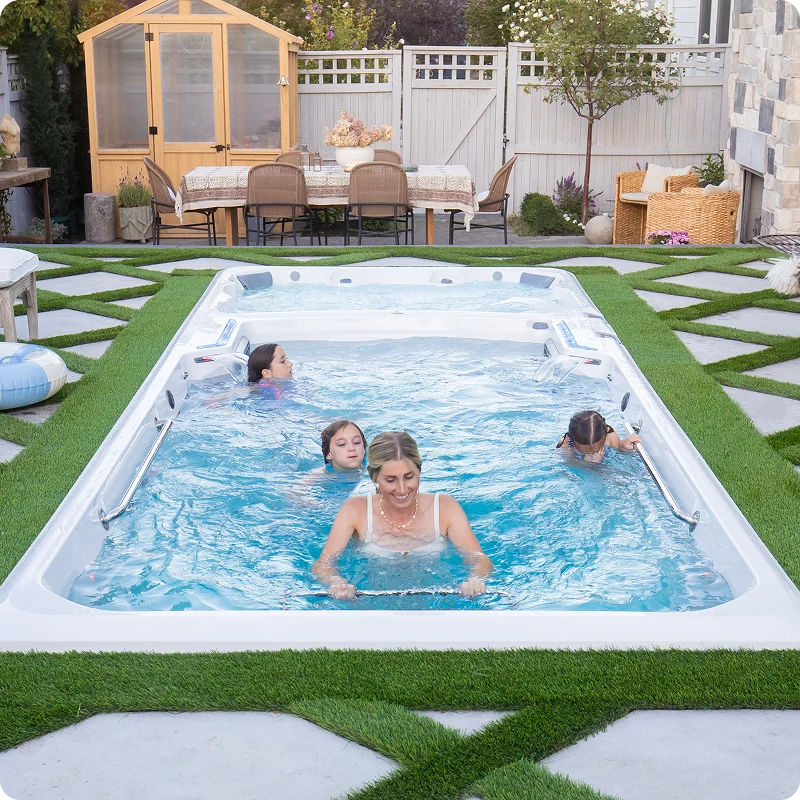

E2000 Swim Spa

E-Series Dual-Temperature Swim Spas by Endless Pools

The E2000 is the dual-temperature flagship of the E-Series from Endless Pools — the swim-spa specialist brand within the Watkins Wellness family. It's a single 20-foot product with two physical zones running at different temperatures simultaneously: a 5-foot spa zone at hot-tub temperature (~104°F, 350 gallons, 36 jets, 5 ergonomic seats) and a 15-foot swim zone at swimming temperature (~85°F, 2,000 gallons, Hydrodrive™ adjustable current, bench seating). Owners swim, run, or exercise in temperate 85-degree water in the front, then unwind at 104 degrees in the spa area at the back — fitness in the front, recovery in the back, no temperature compromise across either use. The Underwater Treadmill is available as an optional add-on in the swim zone. The E2000 is sold and serviced through Seven Seas Pools & Spas.

Ask for pricing

View E-Series Swim Spas

Features At A Glance

Electrical

230 V / 60 amp / 60 Hz (GFCI sub-panel included)

Footprint

20' × 89" × 58" tall (610 × 226 × 147 cm)

Jets

36 hydromassage jets in the spa zone

Water Care

UVC + CD Ozone swim zone / CD Ozone spa zone

E2000 Swim Spa Details

Swim Pump: 5 HP Hydrodrive™ current system
Heater: 4,000 W / 230 V
Electrical: 230 V / 60 amp / 60 Hz (30A/30A split, GFCI sub-panel included)
Water Care: UVC + CD Ozone swim zone / CD Ozone spa zone
Water Capacity: 2,350 gallons combined (2,000 swim + 350 spa)
Lighting: 26 multicolor LED lights, LED illumination bar, and 3 illuminated water features
Frame: 14-gauge galvanized steel frame
Optional Configuration: Underwater Treadmill installed in the swim zone

Who the E2000 Is Built For

The E2000 fits households that want a single backyard product that delivers both a serious swim spa and a hot tub at the same time, without buying two separate spas, running two separate equipment packs, or compromising on either temperature. The dual-temperature 2-Zone Temperature Control is the headline: the spa zone runs at hot-tub temperature (~104°F) for relaxed soaking while the swim zone runs at swim-friendly temperature (~85°F) for lap exercise, and both run simultaneously through the same shell. The 15-foot swim zone uses Hydrodrive™ Technology with 116 pace settings and a 1:08-per-100-yards race-pace ceiling. The 5-foot spa zone has 36 jets and 5 ergonomic seats, comparable in capability to a standalone 5-person hot tub.

It is not the right swim spa for households who:

Want a smaller single-tank footprint at a lower price tier, see the E500 (15'), E550 (15' wider, workout focus), or E700 (17')
Want a dual-temperature spa with a different drivetrain, see the X2000 (X-Series, SwimCross® twin-pump architecture)
Want a recreation- or workout-focused swim spa at a lower service tier, see the R-Series (RecSport®) or X-Series (SwimCross®)
Prefer two separate appliances, Seven Seas can quote a separate Caldera Spas and Hot Spring Spas hot tub paired with any single-tank Endless Pools spa instead

Want the E2000 swim spa experience?

Explore the E2000 with Seven Seas Pools & Spas and compare the Hydrodrive™ current, dual-temperature zones, and optional Underwater Treadmill in person.

Specifications

Spa Specification	Value
Length × Width × Height	20' × 89" × 58" (610 × 226 × 147 cm)
Combined Water Capacity	2,350 gallons (8,896 L), 2,000 swim + 350 spa
Combined Seating	5 spa-zone seats + bench seating in the swim zone

The E2000's swim zone uses Endless Pools' Hydrodrive™ Technology, the company's signature adjustable swim current. The current is smooth, adjustable, and turbulence-free, designed for swimming at race pace or recreational pace alike.

The 116-step adjustability lets a beginner swimmer set a slow drift current and a competitive swimmer crank up to a 1:08-per-100 race-pace effort, all within the same dedicated 15-foot swim zone.

Swim Current Specification	Value
System	Hydrodrive™ Technology
Adjustable pace settings	116
Maximum pace	1:08 per 100 yards (1:11 per 100 meters)
Current character	Smooth, adjustable, turbulence-free
Swim pump	5 HP

Hydrotherapy Specification	Value

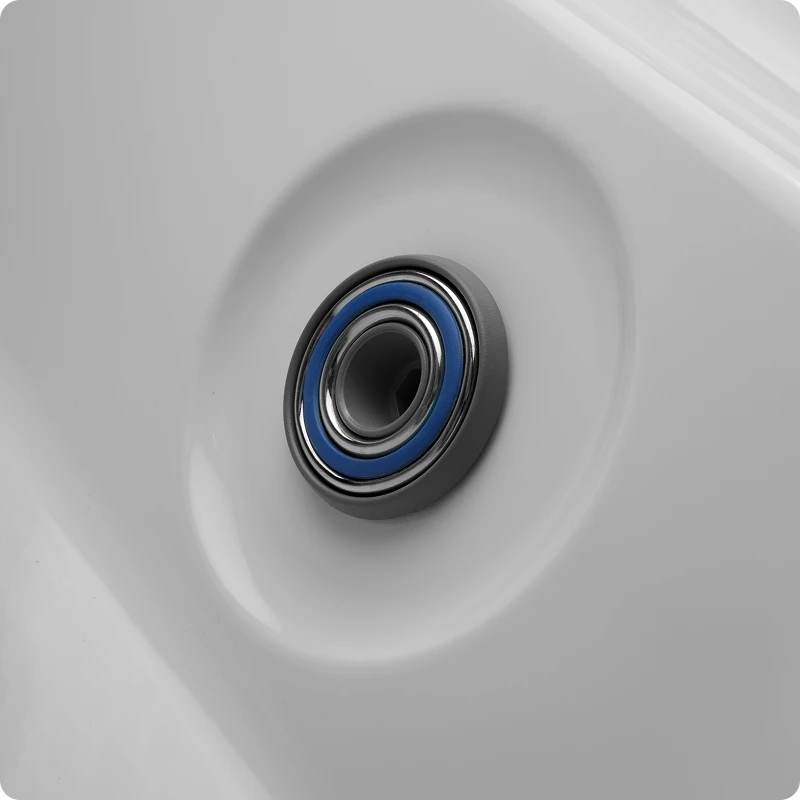

Total Jets	36
Spa Zone Seats	5 ergonomic spa seats with hydrotherapy jets
Swim Zone Seating	Bench seating

The E2000 ships with two water care systems matched to each zone's use profile: UVC + CD Ozone in the swim zone and CD Ozone in the spa zone.

Water Care Specification	Value
Swim zone system	UVC + CD Ozone (Dual-layer protection)
Spa zone system	CD Ozone
APSP 14 compliance	Yes
CEC compliance	Yes
Certifications	APSP 14, CEC

The 30A/30A split service supports independent zone temperature control, each zone gets its own heating circuit, allowing the swim zone and spa zone to run at different temperatures simultaneously.

Electrical Specification	Value
Heater output	4,000 W
Heater voltage	230 V
Standard electrical service	230 V / 60 amp / 60 Hz (30A/30A split)
GFCI sub-panel	Included with the spa

Lighting Specification	Value
Combined interior LED count	26 multicolor LED
Exterior LED bar	Included
Illuminated water features	3

The 14-gauge galvanized steel frame is the structural backbone, meaningfully different from the wood-framed R-Series. The galvanized steel frame is positioned for premium long-term durability against moisture and weight cycling.

Construction Specification	Value
Shell material	Molded Acrylic
Frame	14-Gauge Galvanized Steel
Cabinet descriptor	Durable, all-season
Shell color options	Alpine White, Ice Gray
Cabinet color options	Mocha, Gray

Dual-Temperature Zones and Configuration

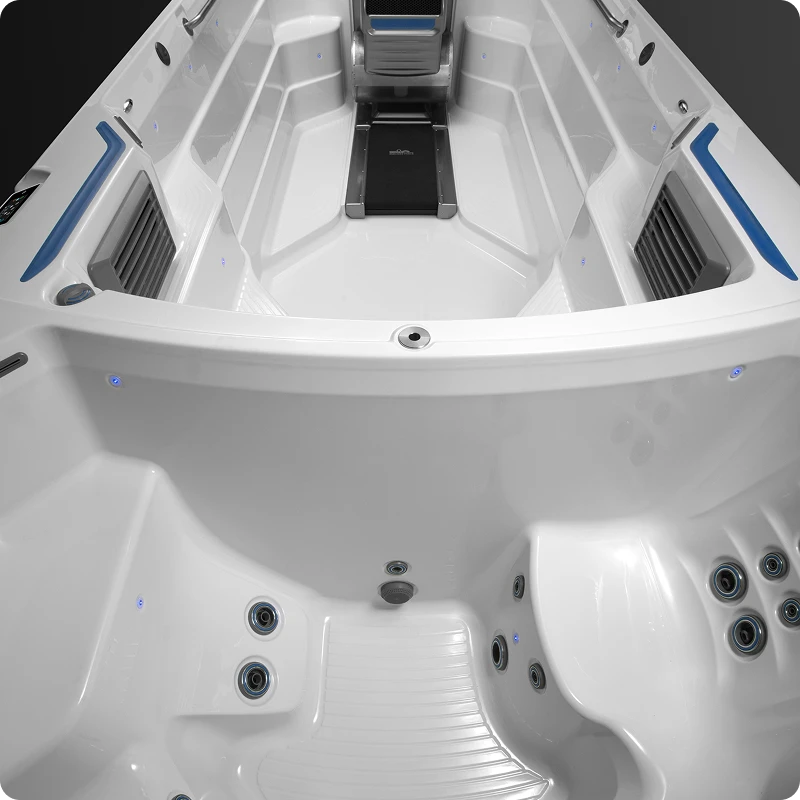

The E2000 is a single product with two physical tank zones running at different temperatures simultaneously. It is not two separate spas — there is one 20-foot shell, one 14-gauge galvanized steel frame, one cabinet, one delivery, one installation. The internal partition between zones is what allows independent temperature control, and the two-zone wiring (30A/30A split on the 60-amp circuit) is what allows independent heating.

Spa Zone (Hot Tub Side)

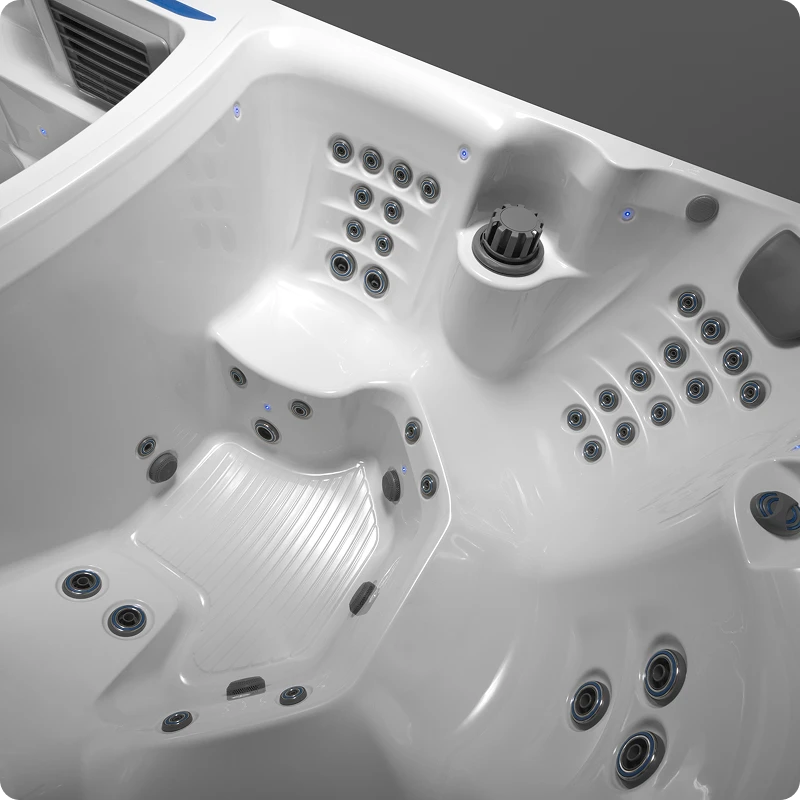

The 5-foot spa zone is positioned at the rear of the spa and runs at hot-tub temperature (~104°F) for relaxed soaking and hydromassage recovery.

Spa Zone Specification	Value
Length	5 feet (1,524 mm)
Height	36.5" (927 mm)
Water Capacity	350 gallons (1,325 L)
Target Temperature	~104°F (hot-tub temperature)
Seats	5 ergonomic spa seats
Jets	36 hydromassage jets
Water Care	CD Ozone
Interior LEDs	12 multicolor LED

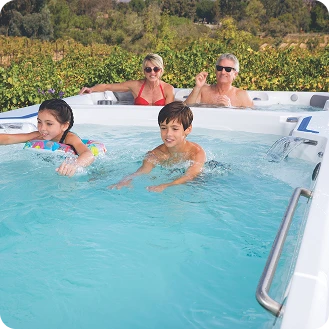

Swim Zone (Swim Side)

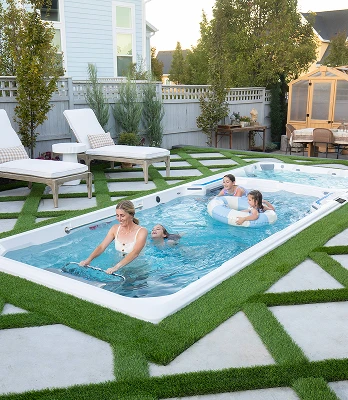

The 15-foot swim zone is positioned at the front of the spa and runs at swim-friendly temperature (~85°F) for lap swimming, water exercise, and (with the optional Underwater Treadmill) water-walking and water-running.

Swim Zone Specification	Value
Length	15 feet (4,572 mm)
Height	58" (1,473 mm)
Swim Depth	48" (1,219 mm)
Water Capacity	2,000 gallons (7,571 L)
Target Temperature	~85°F (swim temperature)
Seating	Bench seating
Swim Current	Hydrodrive™ Technology, 116 pace settings, 1:08 max pace
Swim Pump	5 HP
Water Care	UVC + CD Ozone (Dual-layer)
Interior LEDs	14 multicolor LED
Optional Underwater Treadmill	Yes, installed in swim zone

See if the E2000 fits your space

Review the 20-foot footprint, dual-temperature zones, optional treadmill, and delivery requirements with a Seven Seas advisor.

Combined Specifications

Combined Specification	Value
Total Length	20 feet (6,096 mm)
Total Width	89 inches (2,261 mm)
Total Height	58 inches (1,473 mm)
Combined Water Capacity	2,350 gallons (8,896 L)
Combined Dry Weight	4,215 lbs (1,912 kg)
Combined Filled Weight	25,545 lbs (11,587 kg)
Total Jets	36 (concentrated in spa zone)
Total Interior LEDs	26
Illuminated Water Features	3
Electrical	230 V / 60 amp / 60 Hz (30A/30A split)

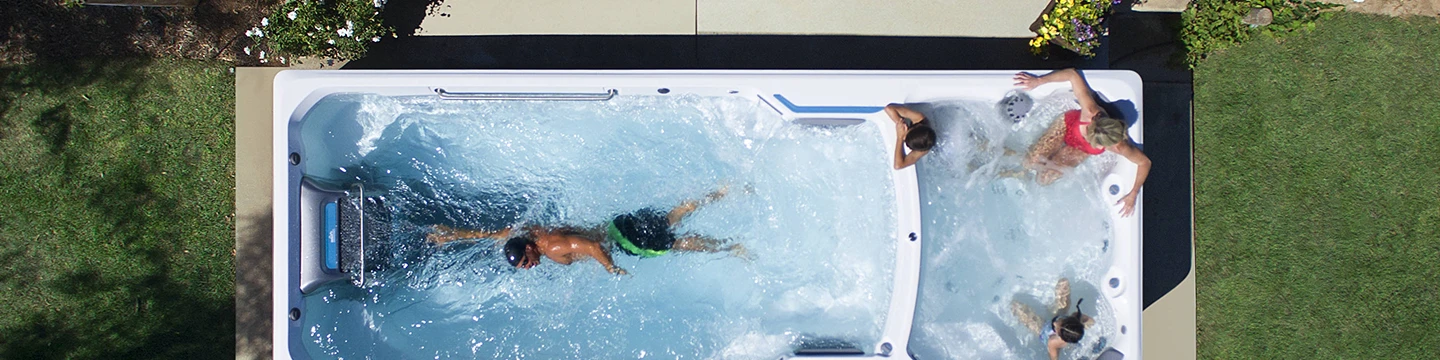

Configuration Side-by-Side

Spa Zone (Hot Tub Side)

Water capacity
350 gallons (1,325 L)
Target temperature
~104°F
Seating
5 ergonomic spa seats
Water care
CD Ozone
Swim current
None
Interior LEDs
12
Jet count
36
Best for
Hot-tub-style soak and hydromassage recovery

Swim Zone (Swim Side)

Water capacity
2,000 gallons (7,571 L)
Target temperature
~85°F
Seating
Bench seating
Underwater Treadmill
Optional, installed in swim zone
Swim current
Hydrodrive™ Technology, 116 pace settings
Interior LEDs
14
Jet count
0 hydromassage jets
Best for
Lap swim, water exercise, optional treadmill

Seven Seas walks every E2000 buyer through the dual-zone configuration during the showroom appointment, visit a Seven Seas showroom to feel the temperature difference, swim current, spa zone, and optional treadmill in person.

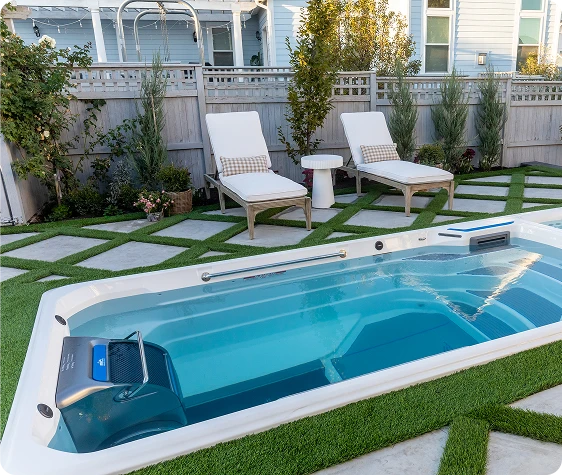

Optional Configurations

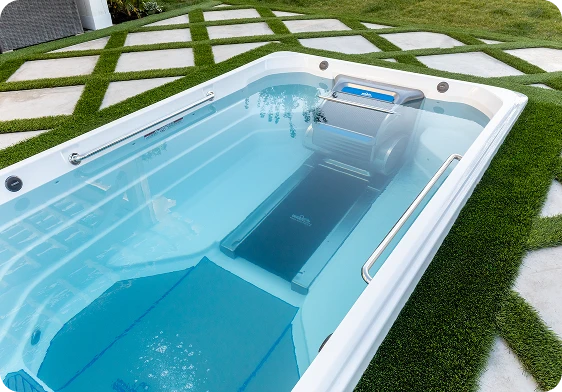

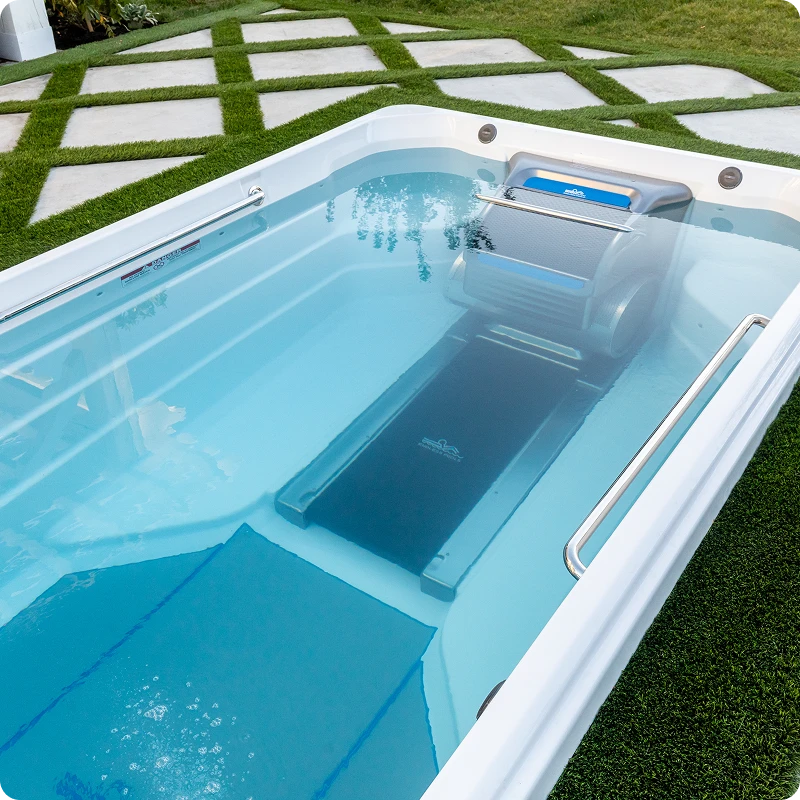

The E2000 supports optional Underwater Treadmill installation in the swim zone — exclusive technology for low-impact aquatic workouts. Optional accessories include the Aquabike, Floor Mirror, Bluetooth® Sound System, Gecko® In.Touch Mobile & WiFi Kit, Endless™ Pools Fit@Home App, and cover-lifter options (Covercradle® Lifter, Easy Slider, Uprite™ Lifter).

The E2000 Swim Spa Experience

Sessions in the E2000 follow a true two-temperature rhythm: swim in the 85°F swim zone against the Hydrodrive™ current, workout in the swim zone with the optional Underwater Treadmill, and recover in the 104°F spa zone with 5 ergonomic seats and 36 jets. The two zones run independently and simultaneously, full lap-pool function in the front and full hot-tub function in the back.

The 2-Zone Temperature Control means owners do not have to compromise: the swim zone is never too hot for a real workout, and the spa zone is never too cool for a real soak. Both zones run simultaneously and can be set to user-selected temperatures within the heater's range.

Related Swim Spas in the E-Series

Related Spa	Length	Width	Notable	Configuration Options
E500	15'	89"	Most compact E-Series, single-tank	Swim / Swim + Treadmill
E550	15'	94"	Wider beam, standing-room workout focus	Swim / Swim + Treadmill
E700	17'	89"	Longest single-tank E-Series, balanced fitness + relaxation	Swim / Swim + Treadmill
E2000 (this model)	20'	89"	Dual temperature: 5' spa zone + 15' swim zone, separate temps	Single-zone, dual-temperature

How the E2000 Compares to Other Endless Pools Series

Endless Pools structures its lineup around three series, each tuned to a different swimming style.

E-Series, Hydrodrive™ Technology, premium adjustable current with race-pace ceiling (1:08 per 100 yards). The E2000 lives here as the dual-temperature flagship. 14-gauge galvanized steel frame. Models: E500, E550, E700, E2000 (dual-temperature). Best for serious lap swimmers.

View E-series Swim Spas

R-Series, RecSport®, recreation- and family-focused. Smaller pumps, wood frame with thermoformed ABS base pan, simpler current system. Models: R200, R220, R500. Best for recreational swim, kids' play, and lighter exercise. No dual-temperature option in the R-Series.

View R-series Swim Spas

X-Series, SwimCross®, cross-training-focused. Twin 2.5 HP pump architecture. Models: X500, X2000 (dual-temperature). Best if you want a cross-trainer current emphasizing aerobic workouts. The X2000 is the X-Series equivalent of the E2000 with a different drivetrain.

View X-series Swim Spas

If you're cross-shopping the traditional hot tub category instead of swim spas, Seven Seas also carries Caldera Spas and Hot Spring Spas lineups.

Ready for a private E2000 wet test?

The E2000 is part of the lineup carried by Seven Seas Pools & Spas. Call ahead or stop by your local showroom to confirm current showroom availability. Visiting a showroom is the fastest way to feel the Hydrodrive™ current at multiple pace settings, walk between the dual zones to feel the actual temperature difference, sit in the 5-seat spa-zone hydrotherapy area with 36 jets, see the 20-foot footprint in person, and (where on display) walk the optional Underwater Treadmill. Call or visit your local Seven Seas Pools & Spas location to schedule a private wet-test soak appointment with the models currently on the floor. Seven Seas advisors can also walk through site-prep, electrical-coordination, and delivery logistics during the same visit.

Installation and Delivery

The E2000 requires a 230 V / 60 amp / 60 Hz circuit wired to a GFCI sub-panel, the sub-panel ships with the spa. The 60-amp service is split 30A/30A internally to support two-zone independent heating.

Site requirements:

Level reinforced concrete pad rated for 25,545 lbs filled, or a deck engineered for the same load
Service clearance on at least one side for equipment access
20-foot minimum length and delivery / craning clearance for the longer footprint

Seven Seas Pools & Spas coordinates the full delivery and installation flow: site assessment, electrical coordination with a licensed electrician, delivery scheduling, GFCI sub-panel mounting, post-fill water balancing, and a hands-on walkthrough of the dual-zone temperature controls and Hydrodrive™ swim controls. The 20-foot length and 25,545-lb filled weight make the E2000 one of the most logistically demanding swim-spa installs; verify path and pad with Seven Seas' delivery team before the build slot.

Water Care and Ongoing Maintenance

Both zones use ozone-based sanitization to keep weekly water-care simple, but with different sanitation tiers:

Swim zone: UVC + CD Ozone Dual-layer protection — UV-C light handles waterborne bacteria as water passes through the system; corona-discharge ozone provides a secondary oxidation layer.
Spa zone: CD Ozone — corona-discharge ozone alone (the spa zone runs hotter, where ozone alone is more effective and UV-C is not required).

Both systems are APSP 14 compliant and CEC certified for energy efficiency. Filter cleaning runs on a monthly cadence — see the swim spa filter care guide in the owners area. Endless Pools recommends a full drain-and-refill on the standard swim-spa cycle (typically every 3-6 months depending on use intensity); Seven Seas walks every owner through the schedule during the post-delivery handoff.

Frequently Asked Questions

The E2000 is a single 20-foot product with two physical zones. An internal partition separates the 5-foot spa zone (rear, ~104°F, 350 gallons) from the 15-foot swim zone (front, ~85°F, 2,000 gallons). The 60-amp electrical service is split internally (30A/30A) so each zone has its own heating circuit. Both zones run simultaneously at their independently-set temperatures.

No, the E2000 is one product. There is one 20-foot shell, one 14-gauge galvanized steel frame, one cabinet, one delivery, one installation, and one wiring run from your sub-panel. The two-zone behavior comes from the internal partition and the split electrical service.

This is a configuration choice made at order. The treadmill installs in the swim zone during manufacturing. Ask your Seven Seas advisor about adding the treadmill to your order before delivery; field-retrofit options vary and a Seven Seas advisor can walk through current possibilities.

The Hydrodrive™ Technology system is rated for a maximum pace of 1:08 per 100 yards (1:11 per 100 meters), with 116 adjustable pace settings between zero and the maximum. That's competitive lap pace, slow enough for a beginner, fast enough for a serious swimmer.

The E2000's standard electrical service is 230 V / 60 amp / 60 Hz with a 30A/30A internal split for independent dual-zone heating. The spa includes a GFCI-protected sub-panel.

The swim zone runs cooler (~85°F) and supports more biological activity, so the dual-layer UVC + CD Ozone system handles both UV-C sterilization and ozone oxidation. The spa zone runs hotter (~104°F), where CD Ozone alone is the matched sanitizer. Both systems are APSP 14 compliant.

Both are 20-foot dual-temperature swim spas with the same 5-foot spa zone and 15-foot swim zone. The E2000 uses Hydrodrive™ Technology with a single 5 HP pump for race-pace lap swimming and a 14-gauge galvanized steel frame. The X2000 uses SwimCross® Technology with twin 2.5 HP pumps for cross-training and a thermoformed ABS base pan substructure.

Standard E2000 delivery from Seven Seas runs 6-12 weeks from order, depending on current Endless Pools production lead times, configuration (with or without treadmill), and the cabinet color combination. The 20-foot length may require additional logistics planning. Inventory in stock at Seven Seas locations can ship faster.

Yes, with proper ventilation and drainage. Indoor swim-spa installations require an electrician-approved 230 V / 60 amp feed, a moisture-resistant floor structure rated for 25,545+ lbs filled, active humidity ventilation (swim spas evaporate more water than hot tubs, and the dual-zone running adds to this), and code-compliant drainage. The E2000's 20-foot length will affect indoor doorway/clearance feasibility, verify with a Seven Seas advisor. See the swim-spa indoor installation guide for full requirements.

Endless Pools does not publish a single warranty page on the E2000 product page. Seven Seas walks every E2000 buyer through the current Endless Pools warranty document at the time of sale, the structure typically includes a multi-year shell warranty plus shorter terms on components and labor. Ask for the latest warranty PDF when you visit a showroom.
