Dual-temperature swim spas are a swim-spa configuration that partitions one 20-foot fiberglass-and-acrylic shell into two physically separated water bodies, a 5-foot spa zone held at hydrotherapy temperature (typically 104 °F / 40 °C) and a 15-foot swim zone held at swim-training temperature (typically 85 °F / 29 °C). The two zones share one cabinet, one set of equipment, one electrical drop, and one delivery footprint, but they each carry their own water, their own heater target, their own jets, and their own sanitization layer. The configuration solves a specific household problem: families that want both hot-tub soaking and lap swimming under the same cover without buying, and powering, and maintaining, two separate aquatic products. Two Endless Pools models implement this configuration today: the E2000 (premium tier, Hydrodrive™ Technology with a single 5 HP propulsion pump) and the X2000 (mid tier, SwimCross™ Technology with twin 2.5 HP propulsion pumps).
A dual-temperature swim spa is one physical product, a single 20' × 89" × 58" molded-acrylic shell, engineered as two separated water bodies at independent temperatures. The configuration is sometimes described in the market as a "swim spa with a hot tub built in" or a "two-zone swim spa," and both descriptions point to the same engineering pattern: a structural partition that lets the spa zone behave like a Caldera or Hot Spring hot tub while the swim zone behaves like a single-temperature lap-training swim spa.
The pattern exists because two-temperature operation is what households actually want. Hot-tub water sits at a soaking temperature that is too warm for sustained lap swimming. Swim-spa training water sits at a temperature that is too cool for sustained relaxed soaking. Without partitioning, a single-tank swim spa can only ever satisfy one of the two use cases at a time, the family soaking after a swim has to wait through a temperature change before the spa is comfortable, or the swimmer training in the afternoon has to fight a current in 100 °F water.
Compare the E2000 and X2000 with Seven Seas Pools & Spas and review the partition layout, swim-current platform, water-care routine, delivery path, and electrical requirements in person.

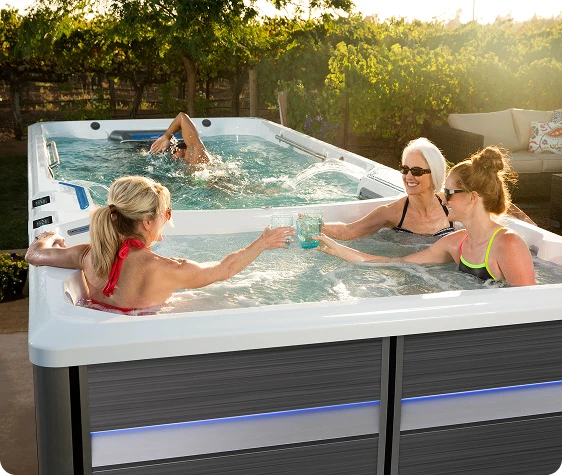

The partition between the spa zone and the swim zone is structural, a built-in transverse wall inside the shell that fully separates the two bodies of water. The two zones do not exchange water. They have their own distinct water capacities, their own filtration paths, their own jet plumbing, and their own ozone injection points.
The physical split inside the shell:
| Configuration Element | Spa Zone (Hot Tub Side) | Swim Zone (Swim Side) |
|---|---|---|
| Length | 5 feet (1,524 mm) | 15 feet (4,572 mm) |
| Water capacity | 350 gallons (1,325 L) | 2,000 gallons (7,571 L) |
| Target temperature | 104 °F (40 °C) | 85 °F (29 °C) |
| Seats / occupancy | 5-person hydrotherapy seating | Open swim bench |
| Hydrotherapy jets | 36 (full hot-tub jet count) | 0 (open swim floor) |
| Interior LED lighting | 12 LEDs | 14 LEDs |
| Sanitization | CD Ozone | UV-C + CD Ozone |
Because the spa zone holds only 350 gallons of hot water, roughly the capacity of a 5-person Caldera Vacanza® hot tub, its energy profile is closer to a hot tub than to a full-volume swim spa. The swim zone's 2,000 gallons live at swim-training temperature (about 19 °F cooler than the spa zone), so the bulk of the water mass operates at a much lower target temperature than a single-temperature swim spa. This is one of the structural reasons a dual-temperature configuration can run more efficiently than a household alternative of "one full hot tub plus one full swim spa," especially in cold-climate installations.
Two Endless Pools models implement this configuration today. Both share the same 20-foot footprint, the same partition pattern, the same dual-temperature operation, and the same dual-zone water care, but they sit on different swim-current platforms in different price tiers.

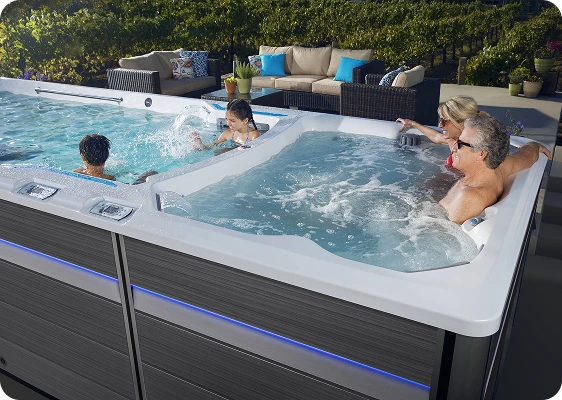

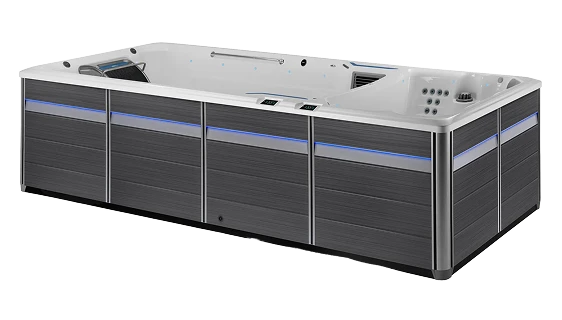

The E2000 is the dual-temperature flagship of the E-Series Swim Spas. The model carries the premium Hydrodrive™ Technology swim current, driven by a single 5 HP propulsion pump tuned for 116 adjustable pace settings with a 1:08 per 100-yard maximum pace, competitive race-pace territory inside the swim zone. The E2000 is built on a 14-gauge galvanized steel frame with ABS base pan for the heaviest premium-tier construction in the dual-temperature lineup, and it offers an optional underwater treadmill in the swim zone for low-impact aquatic walking, running rehab, and arthritis-friendly fitness. Filled weight: 25,545 lb (11,587 kg). Dry weight: 4,215 lb (1,912 kg).
The E2000 is the right choice for households that want the smoothest, deepest, most-adjustable swim current available in a dual-temperature spa, plus the option to add aquatic-walking rehab into the same footprint.

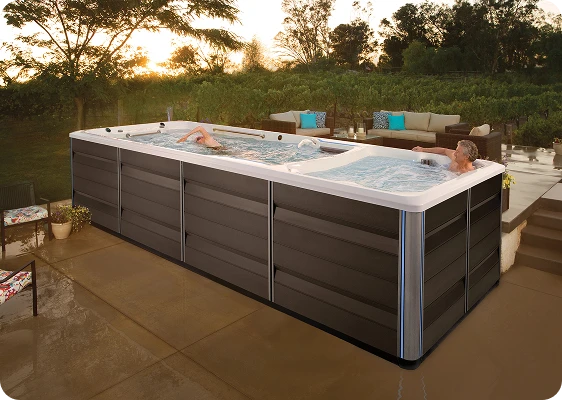

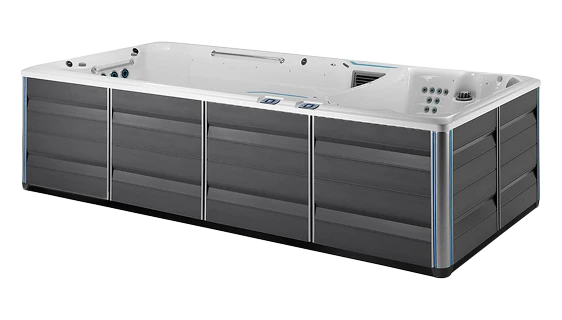

The X2000 is the dual-temperature flagship of the X-Series Swim Spas. The model carries SwimCross™ Technology, a twin-pump architecture using two 2.5 HP propulsion pumps to generate side-by-side swim channels. The twin-pump pattern suits paired swimmers training together and shared family fitness more than single-lane race-pace training. The X2000 is built on a thermoformed ABS base pan rather than the E2000's steel frame, which keeps the dry weight meaningfully lighter (3,460 lb / 1,569 kg) and the filled weight (24,790 lb / 11,245 kg) about 750 lb under the E2000. The X2000 does not offer the underwater-treadmill option.
The X2000 is the right choice for households that want the dual-temperature pattern with twin-pump shared-fitness swim current at a mid-tier price point, particularly families where two adults plan to use the swim zone together rather than one lap swimmer training at race pace.
The spa zone in both dual-temperature models carries a full 36-jet hydrotherapy package and 5-person seating in 350 gallons of 104 °F water. That is a complete hot-tub experience, not a token soaking pocket, the jet count and seating capacity are competitive with a full-size Caldera Vacanza® Series hot tub or a Hot Spring Hot Spot® Series hot tub at the value tier.
What the spa zone delivers:
The spa zone is sized and tuned to behave like a hot tub. Households use it the same way they would use a Caldera or Hot Spring hot tub, for evening soaks, post-workout recovery, hydrotherapy for sore muscles, and shared family time at hot-tub temperature.
The swim zone is the larger of the two water bodies, 2,000 gallons in 15 feet of length at a 48-inch swim depth, with a target temperature of 85 °F that lets adult swimmers sustain lap workouts without overheating.
What the swim zone delivers:
The current in the E2000 (Hydrodrive™, single 5 HP pump) and the current in the X2000 (SwimCross™, twin 2.5 HP pumps) are tuned for different use patterns, see the comparison section below, but both deliver continuous, adjustable swim resistance suitable for daily training inside a 15-foot swim zone.
Both dual-temperature models use a two-tier sanitization architecture matched to the chemistry profile of each zone. This is one of the engineering details that distinguishes a dual-temperature swim spa from "one pump, one filter" single-tank designs.
The split:
The two zones do not exchange water and do not share filter paths. Owners work through two separate water-care routines: one for the small hot zone, one for the large cool zone. Seven Seas Pools & Spas covers this water-care protocol at delivery and in our owners-area resources.

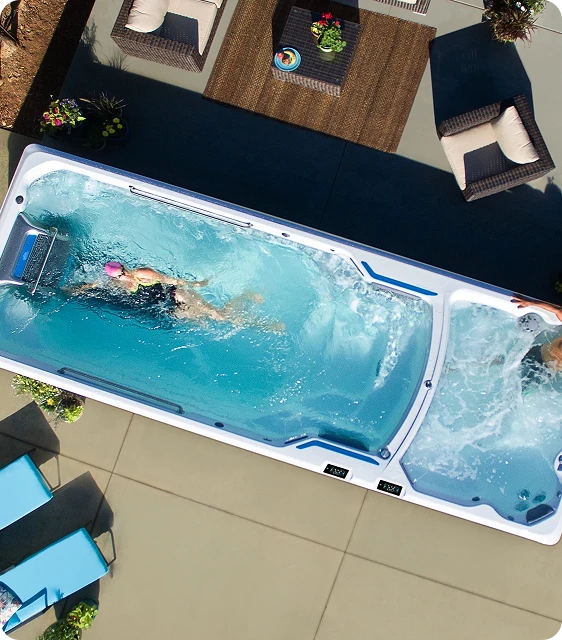

A dual-temperature swim spa installs the same way as any other hardwired Endless Pools swim spa, with one 230 V / 60-amp dedicated electrical circuit feeding the included GFCI sub-panel. There is no plug-and-play option and no convertible electrical pathway; both the E2000 and the X2000 require a hardwired installation coordinated with a licensed electrician.
What the installation involves:
Pad / foundation: a 20-foot × 89-inch level pad capable of bearing the filled weight (25,545 lb on the E2000, 24,790 lb on the X2000)
Electrical service: one 230 V / 60-amp / 60 Hz hardwired circuit, GFCI sub-panel included with the spa
Licensed electrician to land the service in the GFCI sub-panel and the equipment compartment
Delivery access: a 20-foot footprint requires more delivery clearance than a standard hot tub or 15-foot swim spa, Seven Seas confirms access during the showroom appointment
Cover storage for the full 20-foot two-piece cover
The single-electrical-drop design is one of the practical reasons households choose dual-temperature over "separate hot tub plus separate swim spa." Two separate aquatic products would require two separate electrical drops, two separate GFCI sub-panels, two separate pad pours, and two separate delivery coordinations. The dual-temperature pattern collapses all of that into one install.
Review the 20-foot footprint, two-zone water-care cadence, hot-tub seating, swim-current platform, delivery access, and electrical plan with a Seven Seas advisor.
Most swim spas in the market are single-temperature, one water body, one heater target, one set of jets. The buyer chooses either a comfortable hot-tub temperature (and accepts that lap swimming will feel too warm) or a comfortable swim-training temperature (and accepts that soaking will feel too cool). The dual-temperature pattern resolves that compromise by physically separating the two use cases.
| Configuration Element | Single-Temperature Swim Spa | Dual-Temperature Swim Spa |
|---|---|---|
| Tank architecture | One water body | Two separated water bodies |
| Temperature targets | One target for both soaking and swimming | Independent targets per zone |
| Hydrotherapy + lap swim simultaneously | Not possible | Yes, one zone each |
| Lap-swim temperature comfort | Compromised by hot-tub target | Tuned for sustained exertion |
| Hot-soak temperature comfort | Compromised by swim-training target | Tuned for hydrotherapy |
| Total footprint | 12',17' typical | 20' (E2000 / X2000) |
| Electrical | One hardwired circuit | One hardwired circuit |
| Water-care routine | One protocol | Two protocols (one per zone) |
The single-temperature E500, E550, E700, R200, R220, R500, and X500 are right choices for households that prioritize one of the two use cases, either hot-tub soaking or lap-style swim training, and treat the other use case as a secondary feature. The dual-temperature E2000 and X2000 are right choices for households that want both use cases held at their natural target temperature simultaneously and are willing to spend the extra footprint and price tier to get there.
Some households reach this comparison from the other direction, they have decided they want both hydrotherapy soaking and lap swim training, and they are deciding between one dual-temperature swim spa and two separate aquatic products (a hot tub plus a single-temperature swim spa).
| Configuration Element | Dual-Temperature Swim Spa | Separate Hot Tub + Separate Swim Spa |
|---|---|---|
| Footprints to maintain | One 20' shell | Two shells (typically a 7'-8' hot tub + a 12'-17' swim spa) |
| Pads / foundations | One | Two |
| Electrical drops / GFCI sub-panels | One | Two |
| Cover systems | One | Two |
| Water-care protocols | Two zones inside one product | Two complete water-care programs |
| Annual operating cost | Lower (one cabinet's heat-loss surface, shared equipment) | Higher (two cabinets, two equipment compartments) |
| Total purchase | One spa | Two spas |
| Hydrotherapy soak experience | 5-person, 36-jet, 350 gallons | Full standalone hot tub (could be 5-8-person, 30-80 jets) |
| Swim-training swim zone | 15' lap zone | Up to 17'-20' lap zone (swim-spa-only models) |
Households that prize the very best individual hot-tub experience and the very longest individual swim zone, and have the backyard footprint and budget for two products, sometimes still choose the separate-products pathway. Most households that want both modalities choose the dual-temperature configuration because the one-pad, one-electrical, one-cover, one-delivery profile is materially simpler to live with year-round, and because the spa zone is a real 5-person hot tub rather than a token soaking pocket.
Seven Seas Pools & Spas can model both pathways in the showroom, the dual-temperature E2000 or X2000, or a Caldera / Hot Spring hot tub plus a separate single-temperature Endless Pools swim spa, depending on which trade-offs fit the household.
Compare the E2000 and X2000 at Seven Seas Pools & Spas. Call, live chat, or check with your local Seven Seas Pools & Spas showroom to see which dual-temperature Endless Pools swim spas are currently on display and available for wet-test appointments.
The two dual-temperature models share every shell-level dimension, both are 20' × 89" × 58", both partition into a 5' spa zone and a 15' swim zone, both target 104 °F / 85 °F, both use UVC + CD Ozone in the swim zone and CD Ozone in the spa zone, both run on 230 V / 60 amp hardwired electrical, and both include the same 4,000-watt heater. The differences are in swim-current architecture, frame construction, weight, available options, and price tier.
Swim-current platform
Propulsion pump architecture
1 × 5 HP single pump
Adjustable pace settings
116
Maximum pace
1:08 per 100 yd (1:11 per 100 m)
Swim character
Deep, smooth, single-lane race pace
Underwater treadmill option
Yes (E2000 swim+treadmill variant)
Frame / substructure
14-gauge galvanized steel frame with ABS base pan
Dry weight
4,215 lb (1,912 kg)
Filled weight
25,545 lb (11,587 kg)
Price tier
Premium
Swim-current platform
Propulsion pump architecture
2 × 2.5 HP twin pumps
Adjustable pace settings
116
Maximum pace
Smooth, adjustable for all-level fitness
Swim character
Side-by-side current channels for paired swimmers
Underwater treadmill option
No
Frame / substructure
Thermoformed ABS base pan
Dry weight
3,460 lb (1,569 kg)
Filled weight
24,790 lb (11,245 kg)
Price tier
Mid
A dedicated E2000-vs-X2000 comparison page at E2000 vs X2000 (forthcoming) covers the two models head-to-head for households deciding between them at the showroom.
The dual-temperature configuration is the right answer when a household reaches one of these decision points:
Both adults want different things from the same backyard product. One adult wants daily lap-swim training; the other wants evening hydrotherapy soaks. The dual-temperature pattern lets both happen without temperature compromise.
The household wants a hot tub but is also planning a small backyard pool. The 5' spa zone is a real 5-person hot tub; the 15' swim zone replaces the small backyard pool and adds year-round indoor-style swim training in the bargain.
The household has the footprint for one 20-foot product but not for two separate aquatic products. A single 20' × 89" pad fits in many backyards where a separate hot tub pad plus a separate swim-spa pad would not.
The household wants the simpler year-round operating profile of one product. One cover system to lift, one cabinet's worth of insulation, one electrical service to maintain, one annual-drain coordination, even with two water-care protocols, the one-product profile is materially simpler than two separate spas.
Aquatic fitness is part of the household's wellness routine, not a once-a-week treat. If you plan to use the swim zone daily, for fitness, rehab, or low-impact training, get more value from a dedicated 15-foot swim zone at training temperature than from a single-temperature spa where every workout is a temperature compromise.
The configuration is not the right answer when the household primarily wants the fullest, most premium standalone hot-tub experience (a 7- or 8-person Caldera Utopia® Series or Hot Spring Highlife® Series hot tub will out-feature the E2000 / X2000 spa zone), or when the household primarily wants the longest possible swim zone (a single-temperature 20-foot Endless Pools swim spa would dedicate the full footprint to swim training rather than reserving 5 feet for the spa zone). For those customers the standalone path, a Watkins Wellness hot tub plus a separate Endless Pools single-temperature swim spa, sometimes fits better, and Seven Seas can model both pathways at the showroom.
No. The two zones are physically separated by a structural partition inside the shell. They do not exchange water, they hold their own independent water capacities, and each carries its own heater target, jets, and sanitization layer. Owners work through two distinct water-care routines, one for the spa zone, one for the swim zone, though both zones share the same cabinet, equipment compartment, and electrical service.
The two zones share the equipment compartment, but each runs against its own temperature setpoint. In practice, both zones are kept full and at temperature continuously. A dual-temperature swim spa is not designed to be drained and run as a single zone, in the same way that a Caldera or Hot Spring hot tub is not designed to be partially drained.
Operating cost depends on climate, cover use, and water-care cadence, Seven Seas covers operating-cost modeling during the showroom appointment with local climate inputs. Conceptually, the dual-temperature pattern operates closer in efficiency to one single-temperature swim spa than to "one hot tub plus one swim spa," because there is only one cabinet, one equipment compartment, one heater appliance, and one cover-loss surface area. The 350-gallon spa zone is a small water volume to hold at 104 °F, and the 2,000-gallon swim zone holds at 85 °F, about 19 °F cooler than a hot tub. The bulk of the water mass is at a lower target temperature than a single-temperature swim spa held throughout at hot-tub temperature.
No. Both dual-temperature models use one 230 V / 60-amp hardwired circuit feeding one GFCI sub-panel, included with the spa. The two zones are served by one electrical service and one set of equipment.
The underwater treadmill option is currently available on the E-Series only, including the E500, E550, E700, and E2000. The X2000 does not offer a treadmill variant. Households that want both the dual-temperature configuration and the underwater treadmill should plan around the E2000.
Yes. Both the E2000 and the X2000 are available through Seven Seas Pools & Spas. Showroom appointments include hands-on review of the partition pattern, the spa-zone hydrotherapy seating, the swim-zone proportions, and the water-care protocol differences between the two zones. Schedule an appointment to compare the two dual-temperature models and the single-temperature alternatives in the same visit.
A 20-foot footprint requires more delivery clearance than a standard hot tub or 15-foot swim spa. Seven Seas confirms access during the showroom appointment, gate widths, side-yard clearances, slope, and final pad location, and coordinates delivery and electrical service with the buyer's licensed electrician.
