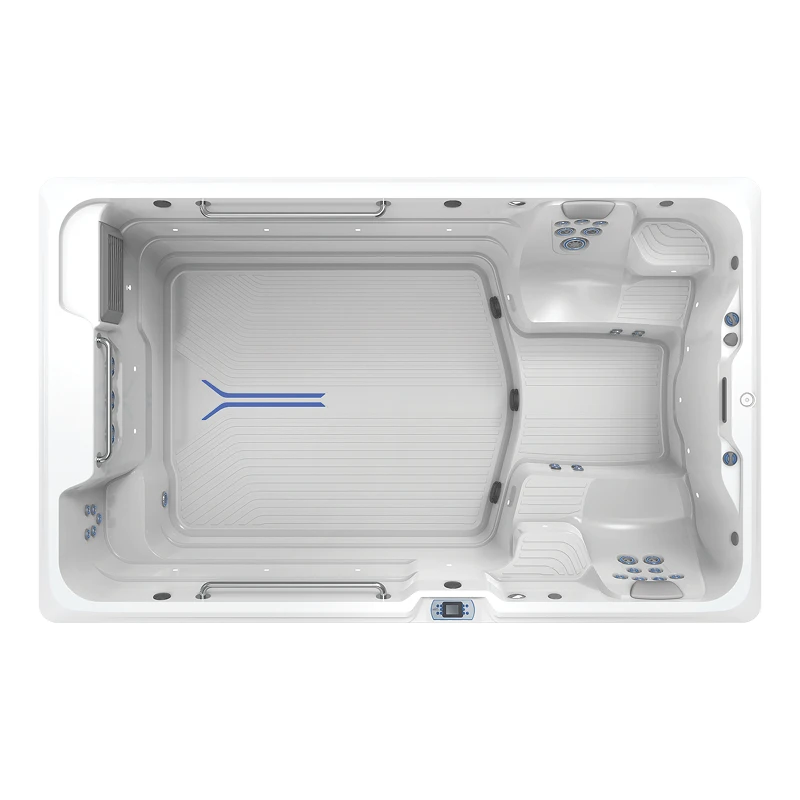

R200 Swim Spa

R-Series Swim Spas by Endless Pools

The R200 is the value-tier 12-foot swim spa from the R-Series by Endless Pools, the swim-spa specialist brand within the Watkins Wellness family. Built around RecSport® jetted current technology, the R200 measures 12 feet long with a 40-inch swim depth and pairs an adjustable swim current with two contoured hydromassage seats plus a shallow entry zone designed for active families with young children. The R200 is the most accessibly priced 12-foot swim spa in the catalog, a jetted swim spa for families that want gentle exercise, hydromassage jets, and quality time in one shell at a friendlier price point than the E-Series. The R200 is sold and serviced through Seven Seas Pools & Spas.

Ask for pricing

View R-Series Swim Spas

Features At A Glance

Electrical

230 V / 30 amp / 60 Hz standard (60 amp optional, GFCI sub-panel included)

Footprint

12' × 89" × 50" tall (366 × 226 × 127 cm)

Jets

27 hydromassage jets with 2 contoured seats plus shallow entry zone

Water Care

CD Ozone

R200 Swim Spa Details

Swim Pump: 2.5 HP RecSport® current system
Heater: 4,000 W / 230 V
Electrical: 230 V / 30 amp / 60 Hz standard (60 amp optional, GFCI sub-panel included)
Water Care: CD Ozone
Filtration: 100 sq. ft.
Lighting: 20 multicolor LED lights, optional exterior LED, and 1 illuminated water feature
Frame: Wood frame with thermoformed ABS base pan
Seating: 5-person layout with 2 hydromassage seats plus shallow entry zone

Who the R200 Is Built For

The R200 fits households that want a family-focused 12-foot swim spa with adjustable resistance for gentle exercise plus a hydromassage soak, at the most accessible footprint and electrical service in the Endless Pools lineup. The shallow entry zone is the headline feature for families with young children: it gives kids a lower-depth area to wade and play while adults use the deeper 40-inch swim zone. The 2.5 HP RecSport® jet pump delivers a recreational-tier current, adequate for stride drills, water aerobics, and casual lap swimming, without the lap-pool resistance of the E-Series Hydrodrive™ machine. The 230 V / 30 amp standard service is the lowest-amperage swim-spa option in the lineup, simplifying many retrofit installs.

It is not the right swim spa for households who:

Need a serious lap-swim current with adjustable race-pace settings, see the E500 or E700 with Hydrodrive™ Technology
Want cross-training-focused twin-pump architecture, see the X500 or X2000 with SwimCross®
Need separate swim and spa zones at different temperatures, see the dual-temperature E2000 or X2000
Want more seating for entertaining, see the R220 or R500
Prefer a hot-tub-only experience without swim function, Seven Seas carries Caldera Spas and Hot Spring Spas for traditional hot tub installations

Want the R200 swim spa experience?

Explore the R200 with Seven Seas Pools & Spas and compare the RecSport® current, hydromassage seats, and shallow entry zone in person.

Specifications

Spa Specification	Value
Length × Width × Height	12' × 89" × 50" (366 × 226 × 127 cm)
Swim Depth	40" (102 cm)
Water Capacity	1,335 gallons (5,054 L)
Dry Weight	1,845 lbs (837 kg)
Filled Weight	14,720 lbs (6,677 kg)
Seating Capacity	5 (includes 2 hydromassage seats plus shallow entry zone)

The R200 is the most compact R-Series footprint, pairing a 12-foot shell with a 40-inch swim depth for family exercise and play.

The R200 uses Endless Pools' RecSport® Technology, the recreation-focused jetted current that powers the R-Series. The current is smooth and adjustable, tuned for all-level fitness and uninterrupted recreational swims.

Swim Current Specification	Value
System	RecSport® Technology
Current character	Smooth, adjustable, recreation-tier jetted current
Swim pump	2.5 HP

The RecSport® system is a different drivetrain from the E-Series Hydrodrive™, designed for recreational swim, water aerobics, and family play rather than competitive lap pacing.

Hydrotherapy Specification	Value
Total Jets	27
Hydromassage Seats	2 contoured spa seats
Shallow Entry Zone	Yes, wade-in zone for active families with young children
Seat Design	Ergonomic, contoured for total-body relaxation

The hydromassage zone is the recovery side of the soak: exercise, play, then unwind in the contoured seats with the jets engaged.

The R200 uses CD Ozone sanitization, the standard water care across the R-Series. The CD Ozone system oxidizes contaminants without the dual-layer UV-C tier found on the E-Series and X-Series spas.

Water Care Specification	Value
Standard system	CD Ozone
APSP 14 compliance	Yes
CEC compliance	Yes
Filtration	100 sq. ft.

Electrical Specification	Value
Heater output	4,000 W
Heater voltage	230 V
Standard electrical service	230 V / 30 amp / 60 Hz
Optional electrical service	230 V / 60 amp
GFCI sub-panel	Included with the spa

The 230 V / 30 amp standard service is the lowest-amperage swim-spa option Endless Pools offers. A 60-amp upgrade is available for maximum simultaneous swim-pump-plus-heater operation.

Lighting Specification	Value
Interior LED count	20 multicolor LED
Exterior LED	Optional
Illuminated water features	1

Construction Specification	Value
Shell material	Molded Acrylic
Frame	Wood Frame with Thermoformed ABS Base Pan
Cabinet descriptor	Insulated, all-season
Shell color options	Alpine White, Ice Gray
Cabinet color options	Mocha, Gray

The wood frame with thermoformed ABS base pan is the structural signature of the R-Series, keeping the spa lighter and more affordable while still rated for outdoor, all-season use.

The R200 includes two hydromassage seats, the RecSport® adjustable jetted current, 27 jets, and a shallow entry zone for active families with young children.

There is no underwater treadmill option for the R-Series. Buyers customize the R200 through shell and cabinet finishes plus accessories such as Aquabike, floor mirror, Bluetooth® Sound System, Gecko® In.Touch Mobile & WiFi Kit, surface kits, and cover-lifter options.

Endless Pools does not publish a single warranty page on the R200 product page. Seven Seas walks every R200 buyer through the current Endless Pools warranty document at the time of sale, the structure typically includes a multi-year shell warranty plus shorter terms on components and labor. Ask for the latest warranty PDF when you visit a showroom.

Variants and Configuration Options

Available Configuration

The R200 is offered in a single standard configuration. The full specification set documented above, 12-foot length, 40-inch swim depth, 27 jets, 2 hydromassage seats plus shallow entry zone, RecSport® jetted current, CD Ozone water care, 230 V / 30 amp standard service, applies to every R200 sold. There is no underwater treadmill option for the R-Series (treadmill availability is reserved for the E500, E550, E700, and E2000 in the E-Series). Buyers customize the R200 through finish selection (shell + cabinet color) and the optional accessory set: Aquabike, floor mirror, Bluetooth® Sound System, Gecko® In.Touch Mobile & WiFi Kit, Endless Pools Surface Kits, and cover-lifter options (Covercradle® Lifter, Easy Slider Cover Mount, Uprite™ Lifter Set, Watkins Covers).

The R200 Swim Spa Experience

Sessions in the R200 follow a three-mode rhythm: swim or workout (RecSport® current on, doing stride drills, water aerobics, or recreational lap swimming against the adjustable jetted current); family play (current off or low, kids in the shallow entry zone, adults in the deeper 40-inch swim zone); and recover (current off, hydromassage seats engaged, soaking in the contoured 2-seat hydrotherapy zone with 27 jets). Gentle exercise, hydromassage recovery, and family time, the spa is built around family-shared use first, with workout function layered on top.

Because the R200 is a single-tank spa (the entire 1,335-gallon volume runs at one temperature), if you want a colder swim zone simultaneous with a hot-tub-temperature soak, evaluate the E2000 or X2000 dual-temperature options.

See if the R200 fits your space

Review the 12-foot footprint, RecSport® current, shallow entry zone, and delivery requirements with a Seven Seas advisor.

Related Swim Spas in the R-Series

Related Spa	Length	Width	Notable	Configuration Options
R200 (this model)	12'	89"	Most compact R-Series, shallow entry, 5-person seating	Standard
R220	12'	89"	Seats nine, 31 jets ("Ultimate Party Pool")	Standard
R500	15'	89"	Larger 15' R-Series, 3 hydromassage seats	Standard

Exact specs for related swim spas are documented on each model's page.

How the R200 Compares to Other Endless Pools Series

Endless Pools structures its lineup around three series, each tuned to a different swimming style.

R-Series, RecSport®, recreation- and family-focused. The R200 lives here with a smaller pump, wood frame with thermoformed ABS base pan, and simpler current system. Best for recreational swim, kids' play, and lighter exercise.

View R-Series Swim Spas

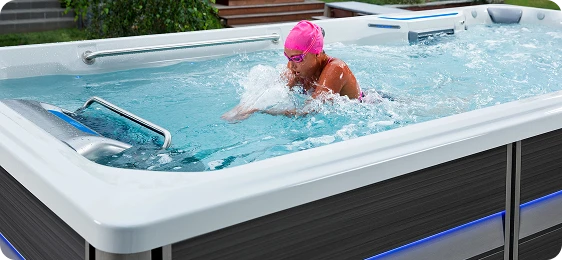

E-Series, Hydrodrive™ Technology premium adjustable current with race-pace ceiling. Best for serious lap swimmers and households that want adjustable pace control across a wide range of swim abilities.

View E-Series Swim Spas

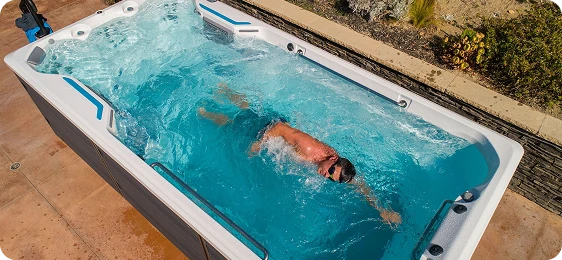

X-Series, SwimCross®, cross-training focused. Twin 2.5 HP pump architecture, generally similar footprint to E-Series. Best if you want a cross-trainer current emphasizing aerobic workouts.

View X-Series Swim Spas

If you're cross-shopping the traditional hot tub category instead of swim spas, Seven Seas also carries the Caldera Spas and Hot Spring Spas lineups, both Watkins Wellness brands focused on hydrotherapy without the swim function. The team can walk you through swim-spa-vs-hot-tub at any showroom.

Ready for a private R200 wet test?

The R200 is part of the lineup carried by Seven Seas Pools & Spas. Call ahead or stop by your local showroom to confirm current showroom availability. Visiting a showroom is the fastest way to feel the RecSport® current at multiple settings, sit in the hydromassage seats, see the shallow entry zone in person, and evaluate both Alpine White and Ice Gray shell finishes.

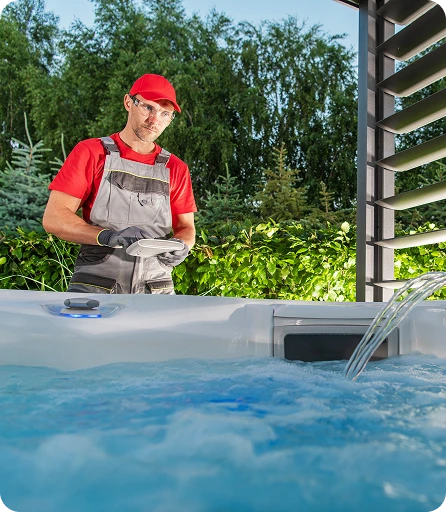

Installation and Delivery

The R200 standard install requires a 230 V / 30 amp / 60 Hz circuit wired to a GFCI sub-panel, the sub-panel ships with the spa. A 60-amp upgrade circuit is optional.

Site requirements:

Level reinforced concrete pad rated for 14,720 lbs filled, or a deck engineered for the same load
Service clearance on at least one side for equipment access
12-foot minimum length for the spa shell, plus delivery / craning clearance

Seven Seas Pools & Spas coordinates the full delivery and installation flow: site assessment, electrical coordination with a licensed electrician, delivery scheduling, GFCI sub-panel mounting, post-fill water balancing, and a hands-on walkthrough of the RecSport® current controls. The R200's 12-foot length and 14,720-lb filled weight make it one of the easier swim-spa installs in the category; most retrofit yards accommodate it without specialized craning. The Seven Seas team handles the logistics so the buyer doesn't have to.

Water Care and Ongoing Maintenance

The CD Ozone sanitization keeps weekly water-care simple, using corona-discharge ozone to oxidize waterborne contaminants without dosing the spa with manual chlorine for daily upkeep. The system is APSP 14 compliant and CEC certified for energy efficiency.

Filter cleaning runs on a monthly cadence for the 100 sq. ft. cartridge, see the swim spa filter care guide in the owners area. Endless Pools recommends a full drain-and-refill on the standard swim-spa cycle (typically every 3-6 months depending on use intensity); Seven Seas walks every owner through the schedule during the post-delivery handoff.

Frequently Asked Questions

The R200 is best for active families who want gentle exercise, hydromassage, and shared family time in one footprint at an approachable price tier. The shallow entry zone makes it especially friendly for households with young children.

RecSport® Technology drives a smooth, adjustable jetted current using a 2.5 HP pump. It is a different drivetrain from the E-Series Hydrodrive™ system, which is positioned for competitive lap-swim pacing.

The R200 is 12 feet long, 89 inches wide, and 50 inches tall with a 40-inch swim depth. Filled, it weighs 14,720 lbs (6,677 kg), so site prep needs a level reinforced concrete pad or an engineered deck.

The R200 ships with a standard 230 V / 30 amp / 60 Hz electrical service. A 230 V / 60 amp upgrade is optional, and the spa includes a GFCI sub-panel.

The R200 uses CD Ozone sanitization as standard. The system is APSP 14 compliant and CEC certified.

No. Underwater treadmill availability is reserved for the E-Series. The R200 is a single-configuration spa focused on RecSport® jetted swim, hydromassage, and family use.

No. The R200 is a single-tank spa running at one temperature throughout. For separate swim and spa zones, evaluate the E2000 or X2000.

Endless Pools does not publish a single warranty page on the R200 product page. Seven Seas walks every R200 buyer through the current Endless Pools warranty document at the time of sale.

Standard R200 delivery from Seven Seas runs 6-12 weeks from order, depending on current Endless Pools production lead times and finish selection. Inventory in stock at Seven Seas locations can ship faster.

Yes, with proper ventilation and drainage. Indoor swim-spa installations require an electrician-approved 230 V / 30 amp feed, a moisture-resistant floor structure rated for 14,720+ lbs filled, active humidity ventilation, and code-compliant drainage.
