Envoy Hot Tub Style Selector

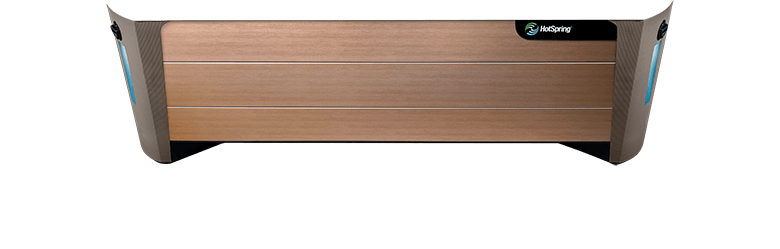

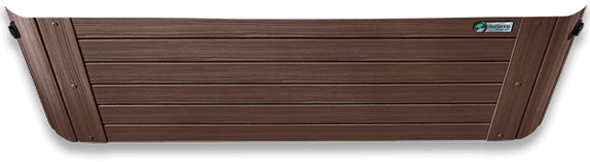

Select A Cabinet

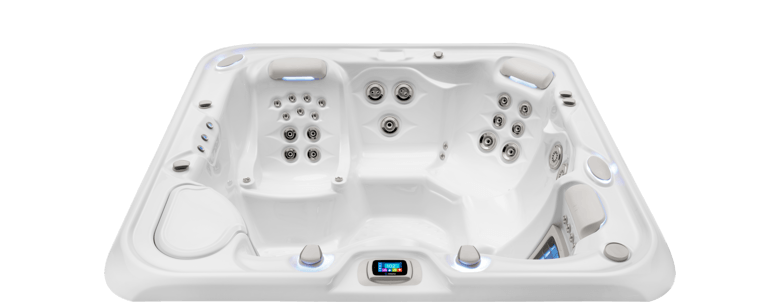

Select a Shell
Envoy
Highlife Series Hot Tub
Featuring 43 powerful jets at its heart, the Hot Spring Envoy provides powerful performance that leads to soothing, blissful relaxation. With seating for 5, advanced Tri-X® filtration for cleaner water and Wavemaster® continuous duty jet pumps, spending time in your Envoy will help you feel your best.
View All 5 Person Spas Shop Hot Tub Covers- 5 Adults
- 55 Jets
- 455 Gallons
- 8’4” x 7’7” x 38”
Own This Hot Tub For As Little As $343.01/mo.
I'd like to talk to someone about getting a Envoy
Fill out this form and we will be in contact with you shortly about how you can begin your journey to enjoying an Envoy
Envoy Series Reviews
Envoy Series Accessories
FreshWater™ Salt System
The FreshWater™ Salt System is an innovative add-on for your new Hot Spring (Highlife Series, or Limelight Series) hot tub. The system uses a titanium cartridge to sanitize and clean your hot tub’s water; thus, reducing the amount of chemicals required and leaving the water sparkling and feeling amazing without any harsh odor.
Cover Lifters
A hot tub cover lifter takes the heavy lifting out of your hands! Having cover lifter makes opening your new hot tub a quick process to lift, flip and uncover. Best of all, the added cover lifter keeps your hot tub’s cover off the ground while extending its overall life.
Entertainment Systems
A hot tub isn't complete without an integrated entertainment system. Hop into your new hot tub, kick back and stream your favorite music to the speakers or catch up on your favorite show. It’s the best blend of relaxation and technology – it’s just like having your own private spa at home!
Spa Steps
A set of spa steps helps ease your entry into your new Hot Spring® hot tub. Check out our options that are handpicked to match your cabinet and enhance the accessibility to your new hot tub. Choose from a wide variety of styles and materials to complete your new hot tub’s look and function.
Envoy Series Specs
Dimensions
8’4” x 7’7” x 38”
Weight
785 lbs./355 kg • 5,455 lbs./2,480 kg
Filtration
325 sq. ft., top loading Tri-X® filters; 100% no-bypass filtration
Heater Output
Titanium No-Fault® 4,000 W / 230 V
Circulation Pump
SilentFlo 5000® for quiet continuous filtration
Jet Pumps
Pump 1 • Wavemaster® 9000
One-Speed;2.5 HP Continuous Duty;5.2 HP Breakdown Torque
Pump 2 • Wavemaster® 9200
Two-Speed;2.5 HP Continuous Duty5.2 HP Breakdown Torque;
Luxury
Lighting • Customizable LED Zone Lighting Multi-Color LED Lighting with Timer
Fountain • BellaFontana® with Three Illuminated Arcs of Water
Entertainment • Wireless Sound System
Water Care System
FreshWater™ Salt System Ready
Disclaimer: G.F.C.I. protected sub-panel required in 230v mode. Export models available in 230v, 50Hz, 1500w heater. Some units require a dedicated circuit supplied to the unit at all times. Electrical requirements will vary outside the U.S. Read model specification document for more details.
Envoy Downloads
Owner's Manuals
- Highlife 2019 Manual.PDF
- Highlife 2018 Manual.PDF
- Highlife 2017 Manual.PDF
- Highlife 2016 Manual.PDF
- Highlife Owners Manual 2011.PDF
- Highlife Owners Manual 2014.PDF
- Highlife Owners Manual 2013.PDF
- Highlife Owners Manual 2012.PDF
Tech Documents & Guides
- 2016 Hot Spring Highlife Specifications.PDF
- ACE® Installation Instructions.PDF
- ACE® Retrofit Owner's Manual.PDF
- Freshwater Maintenance Troubleshooting Guide.PDF
- HotSpring IQ2020 Control Panel Quick Reference Guide.PDF
- HotSpring Wireless Music User Guide Rev B.PDF
- Moonlight Music System Remote User Guide.PDF
- Tri-X Cleaning Procedure.PDF
