Freeflow® Series by Hot Spring Spas

Every Freeflow® model is FROG® Sanitizing System Ready, the entry-tier mineral-cartridge sanitization platform. FROG® uses prefilled cartridges that combine sanitizing minerals with a low, steady dose of chlorine or bromine. Owners drop the cartridge into the spa, set the dial, and the cartridge meters sanitizer over roughly 3-4 weeks before swapping in a fresh one.

The platform is engineered for low active management, no salt cell to maintain, and no IQ Smart Monitoring + Dosing infrastructure. This is distinct from the FreshWater® Salt platforms used on higher Hot Spring tiers; if you want salt, step up to the Hot Spot® Series or beyond.

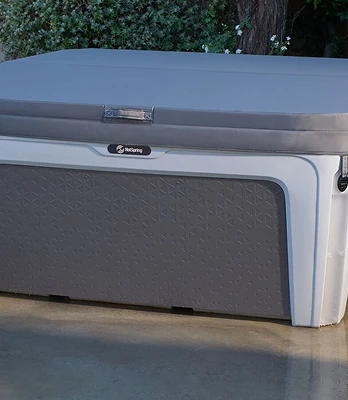

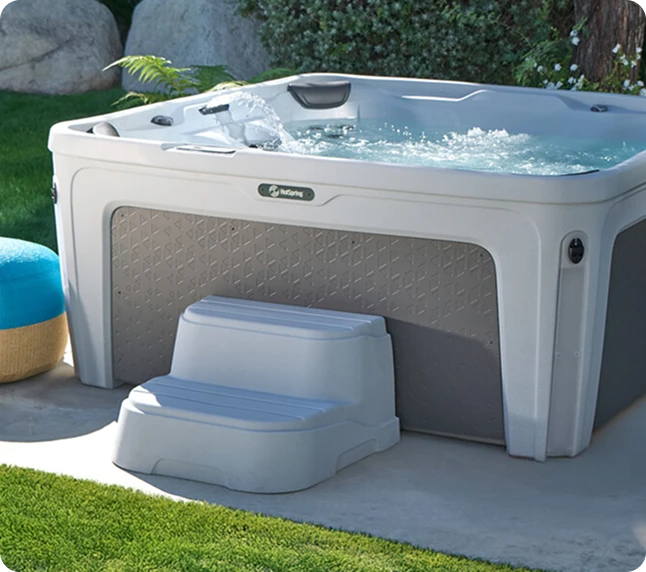

Freeflow® models use a Rotationally Molded high-durability unibody shell-and-cabinet. The cabinet is a single rotomolded piece rather than a panel-and-frame assembly with separate decorative panels, closer in construction philosophy to the Caldera Fantasy® Series than to the EcoTech cabinets on higher Hot Spring tiers.

The rotomolded approach simplifies construction, removes panel seams, handles relocation and weather better than decorative panels, and reduces maintenance touchpoints. Available shell/cabinet combinations include Smoke and Dune across the lineup; cabinet patterns include Diamond Weave and Mosaic on most models.

Every Freeflow® model, all four, ships convertible between 115 V Plug-N-Play and 230 V. This is the only Hot Spring tier where 115 V plug-and-play is standard across the entire lineup.

On 115 V, the spa runs from a dedicated GFCI-protected outlet without a licensed electrician trip and delivers a 1,000 W heater. On 230 V, the spa is hardwired by an electrician and the heater output rises to 4,000 W, which speeds up cover-off recovery and lets jets and heater run simultaneously.

Every Freeflow® model uses a Polyester Filter with Free-Flow Core. Effective filtration area is 50 sq. ft. on the Monterey™, Excursion®, and Azure™, and 25 sq. ft. on the smaller Mini™.

The Free-Flow Core design keeps water moving through the filter media at the lower flow rates typical of an entry-tier 2-Speed 1.5 HP jet pump.

Freeflow® uses an LCD Screen control panel, a button-driven LCD interface for setting temperature, jet speeds, and filtration cycles. There is no touchscreen, no Connected Spa Kit smart-app integration, and no IQ 2020® Color LCD branding at the Freeflow tier.

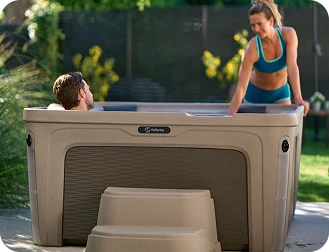

If you want a Color LCD button control, step up to the Limelight® Series; if you want the Color LCD Touchscreen, step up to the Highlife® Series.

Every Freeflow® model uses a 2-Speed 1.5 HP jet pump, a single jet pump platform with no Wavemaster® branding and no SilentFlo 5000® dedicated circulation pump. The 2-speed design provides a low filtration speed for quiet daily filtration cycles and a high speed for full-jet hydrotherapy.

The simpler pump architecture is one of the principal cost-out points between Freeflow® and the higher Hot Spring tiers; if you want the Wavemaster® / SilentFlo 5000® combination, step up to Hot Spot® or higher.

Freeflow® models are insulated with Spray-In Full Foam sprayed into the cavity between the rotomolded shell and the rotomolded cabinet. Full Foam locks the plumbing in place, dampens vibration, and provides an entry-tier energy-efficiency envelope adequate for CEC and APSP 14 certification.

This is a different insulation philosophy from FiberCor® high-density fiber-blend used on Hot Spot® and Limelight®, and from the multi-layer urethane on Highlife®.

Every Freeflow® ships with the WeatherPro™ 4" Tapered Core with Hinge Seal, custom-fit, the same cover family used across the broader Hot Spring catalog. The tapered core sheds water and snow; the hinge seal blocks heat loss along the centerline fold.

Cover colors are Gray, Cocoa, and Black across the series.

Freeflow® models include a single Footwell Multi-Color LED Light for interior illumination. The Mini™ is interior-light only; the four full-size models add 2 External Lights at the cabinet exterior.

The Freeflow® cover lifter program is intentionally simple: Cover RX Cover Lifter for the Azure™ and Mini™, and Low Mount Spa Cover Lifter for the Monterey™ and Excursion®, both optional add-ons. Optional Freeflow Collection Straight Step or Curved Step entry steps round out the accessory list.

Every Freeflow® model ships convertible between 115 V Plug-N-Play and 230 V. Plug-and-play installs need a dedicated GFCI-protected 115 V outlet within reach of the spa cord; no licensed electrician trip is required for the standard install. A 230 V install requires a licensed electrician to wire the included GFCI sub-panel.

The trade-off: a 230 V install delivers a 4,000 W heater versus 1,000 W on 115 V, faster recovery from cover-off, and the ability to run jets and heater simultaneously.

Freeflow® filled weights span roughly 1,655 lbs (Mini™) to 3,515 lbs (Monterey™), lighter than comparable-capacity Hot Spot® and Limelight® models because of the lower water volumes and the rotomolded cabinet.

A level reinforced concrete pad, a deck rated for the filled weight, or a prepared spa pad is required, plus 24" of service clearance on at least one side. The Mini™'s 6' × 4'5" footprint slides through ordinary doorways, which is the central reason it is the most popular Hot Spring choice for indoor and finished-basement installations.

Every Freeflow® is FROG® Sanitizing System Ready. The FROG® cartridge replacement cycle runs on a roughly 3-4 week cadence depending on bather load, with cartridges available in chlorine and bromine variants.

Owners who want salt-water sanitization should not buy at the Freeflow tier; there is no salt-cell upgrade path for Freeflow. Instead, see the Hot Spot® Series or the Highlife® Series.

Freeflow® Series warranties run 5 years on structure/shell, 2 years on cabinet, 1 year on plumbing, and 1 year on components. This is a shorter warranty than the Hot Spot® Series, particularly on plumbing and component terms.

If you specifically want longer plumbing or component coverage, step up to Hot Spot® or beyond. Seven Seas honors and processes warranty claims for every Freeflow® sold.

Freeflow® models share the same Watkins Wellness production and freight network as the rest of the Hot Spring catalog. Lead times typically run shorter than higher-tier models because of the simpler rotomolded cabinet and the smaller footprints.

Seven Seas confirms the active lead time at quote and coordinates white-glove delivery and 115 V or 230 V installation.

The Mini™ (6' × 4'5" × 29", 1,655 lbs filled) and the Excursion® (6'6" × 6'6" × 34", 3,175 lbs filled) are the two Freeflow® models most often specified for indoor installation, finished basements, three-season rooms, screened porches, and pool-house enclosures.

The 115 V Plug-N-Play option avoids the 230 V hardwire complication that often blocks indoor installs in older homes, and the rotomolded cabinet handles humid indoor environments with fewer maintenance touchpoints than a panel-and-frame cabinet.
