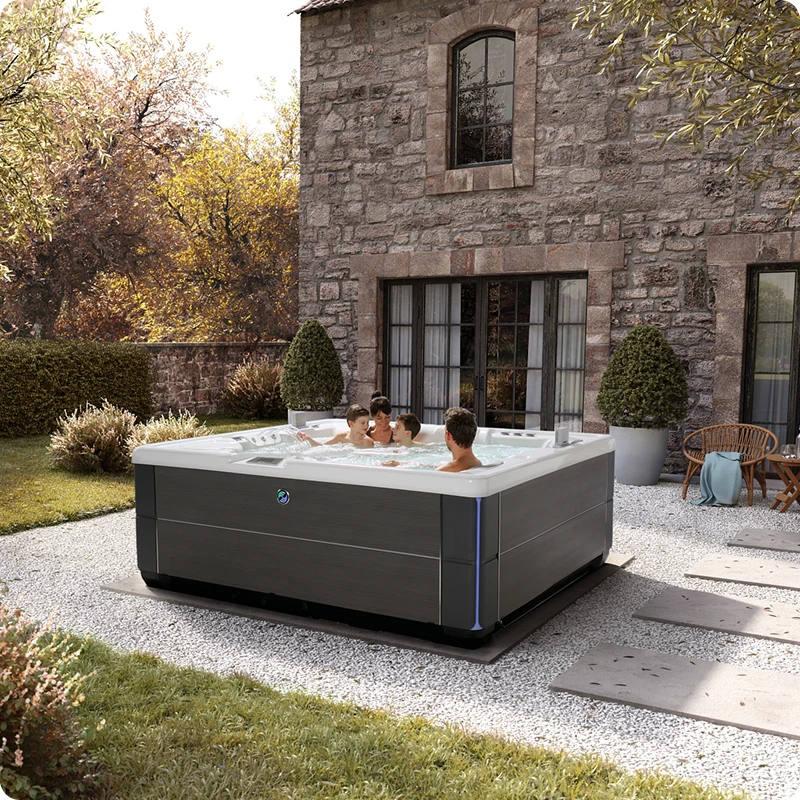

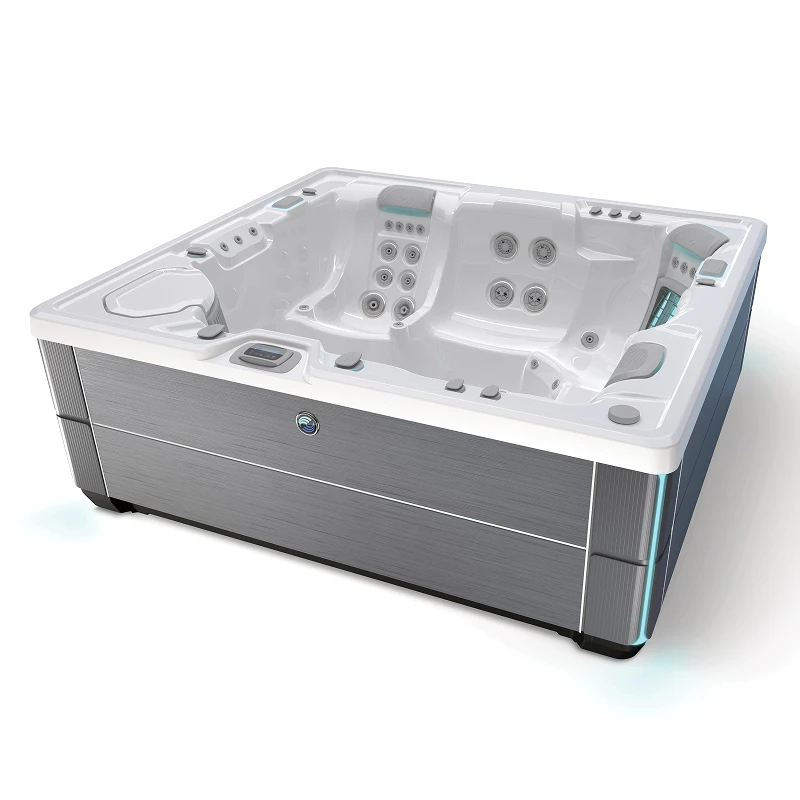

Envoy® Hot Tub

Highlife® Series by Hot Spring Spas

The Envoy® is a five-person luxury hot tub with a Moto-Massage® Lounge and a Captain's Chair in the Highlife® Series, the premium hydrotherapy line manufactured by Hot Spring Spas, a Watkins Wellness brand. Measuring 8'4" × 7'7" with a 455-gallon water capacity, the Envoy combines the patented Moto-Massage® DX over a recline lounger, a deeply sculpted Captain's Chair, a Bucket Seat, and Bench Seats across 55 jets and eight jet types, the highest jet count in the five-seat Highlife lineup. It ships with the FreshWater® IQ Ready Salt System included, the 100% No-Bypass Tri-X® filtration cycle, and the SilentFlo 5000® circulation pump. The Envoy reads more like outdoor furniture than a hot tub, premium materials, premium finish. The Envoy is sold and serviced through Seven Seas Pools & Spas.

Starting at $360.68/month*

Features At A Glance

Capacity

5 adults with Captain's Chair, Moto-Massage® Lounge, Bucket Seat, and Bench Seats

Footprint

8'4" × 7'7" × 38" tall (254 × 231 × 97 cm)

Jets

55 total across 8 jet types, highest jet count in the 5-seat Highlife

Pumps

2 Wavemaster® jet pumps (9000 + 9200, both 2.5 HP) plus a SilentFlo 5000® circulation pump

Envoy Hot Tub Details

  • Pumps: 2 Wavemaster® jet pumps (9000 + 9200, both 2.5 HP) plus a SilentFlo 5000® circulation pump
  • Heater: No-Fault® 4,000 W (230 V)
  • Electrical: 230 V / 50 amp / 60 Hz (GFCI sub-panel included)
  • Water Care: FreshWater® IQ Ready Salt System included; Smart Monitoring + Dosing optional
  • Filtration: 100% No-Bypass with High-Flow Tri-X® Filters (325 sq. ft. effective)
  • Warranty: 7-year structure and shell, 5-year cabinet / plumbing / heater / components, 2-year interior lighting

Who the Envoy® Is Built For

The Envoy fits households that want the most jets per seat in the Highlife lineup along with both a recline lounger and a deeply sculpted Captain's Chair. With 55 jets across eight jet types, including five JetStream® and 30 Directional Precision®, the Envoy delivers the most varied 5-person Highlife hydrotherapy session in the lineup. The Moto-Massage® Lounge places the patented Moto-Massage® DX sweeping back jet over a reclined seat with legs extended, while the Captain's Chair is deeply sculpted to wrap the user in a full-body jet experience. With FreshWater® IQ Ready Salt included, the Envoy ships ready for low-maintenance salt-water sanitization out of the box. The Envoy fits if you want lounge-seat hydrotherapy plus Captain's Chair seating, the highest 5-seat Highlife jet count, and the longest warranty terms in the Hot Spring lineup.

It is not the right choice if you:
  • Want a 110 V plug-and-play install, the Envoy requires a 230 V hardwired connection. For a 115 V-convertible Highlife, see the Jetsetter®
  • Need to seat six or seven adults, see the open-seating Vanguard® (6) or Grandee® (7)
  • Need a smaller footprint, the Envoy is 8'4" × 7'7", the same large pad as the Grandee. For a 7'3" square Highlife with a lounger see the Aria®; for a rectangular 5-seat lounger that fits tight spaces see the Sovereign®
  • Prefer open seating without a lounger, see the Vanguard® or Prodigy®

Want the Envoy experience?

Explore the Envoy with Seven Seas Pools & Spas and compare the Highlife seating, Moto-Massage system, and water-care features in person.

Choose Your Colors

Envoy Combined

Available Cabinet Styles

Blackwood
Brushed Nickel
Charcoal
Java
Linen

Available Shell Styles

I'd Like To Talk To Someone About Getting A Envoy

Fill out this form and we will be in contact with you shortly about how you can begin your journey to enjoying a Envoy.

Select Preferred Form of Contact
Select preferred form of contact
Select Best Time To Contact
Select Best Time To Contact
Select Store Closest To You
Select Store Closest To You

Specifications

Spa SpecificationValue
Seating capacity5 adults (Captain's Chair, Moto-Massage® Lounge, Bucket Seat, Bench Seats)
Length × Width × Height8'4" × 7'7" × 38" (254 × 231 × 97 cm)
Water capacity455 gallons (1,725 liters)
Weight (dry)785 lbs (355 kg)
Weight (filled)5,455 lbs (2,480 kg)

The Envoy uses two Wavemaster® jet pumps, the 9000 (one-speed) and the 9200 (two-speed), both rated 2.5 HP continuous duty / 5.2 HP breakdown torque, paired with a SilentFlo 5000® circulation pump that runs continuously for low-noise filtration. The 55 jets distribute across eight engineered jet types, each engineered for a specific muscle group and seat experience:

Jet TypeCountTargeted Area

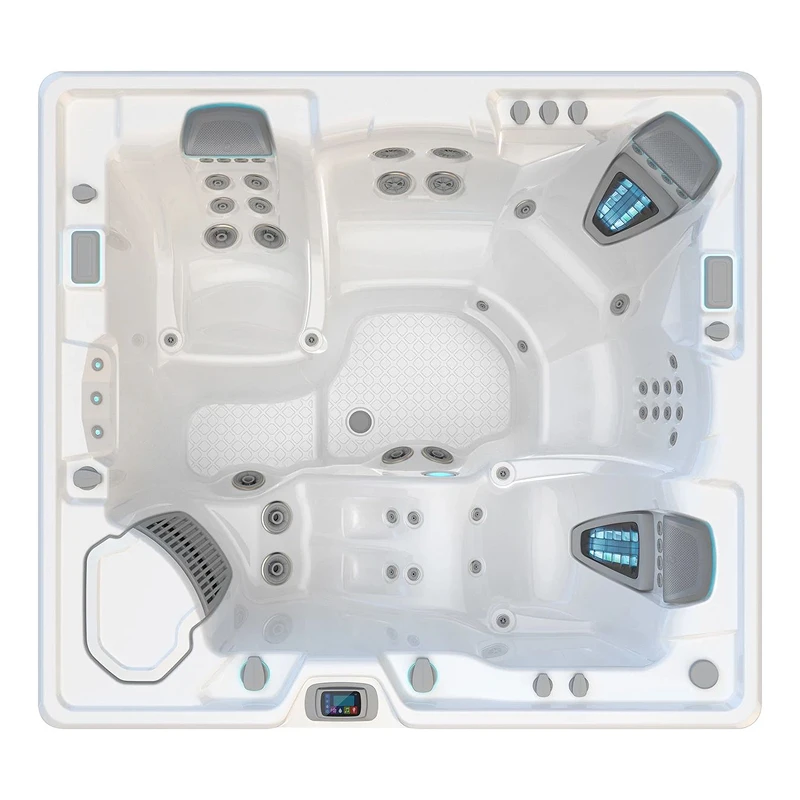

Moto-Massage® DX2Patented dual sweeping streams up and down the back, including over the lounger
SoothingStream®2"Broad stream spins through multiple openings for powerful pulsing effect"
JetStream®5"Adjustable directional jets provide powerful stream for deep massage"
Rotary Hydromassage2"Large jet streams spin in rhythmic circular motion"
Directional Hydromassage2Adjustable directional pressure
Hydrostream®6Mid-sized jets with directional adjustment
Rotary Precision®4Smaller rotating precision jets
Directional Precision®30"Adjustable up, down, right and left for pinpoint muscle treatment"
  • Moto-Massage® DX (×2), patented moving jet. Two streams of water sweep up and down the entire back from a stationary seat, a pattern only Hot Spring offers
  • Comfort Control®, main intensity dial for the entire spa. Lets users move from "soft touch to powerful massage" without leaving the seat
  • SmartJet® System, selectively distributes water flow to specific jet groups and seats, so individual users can boost or reduce pressure in their position
  • Captain's Chair, "deeply sculpted to wrap you in relaxing comfort" for a full-body wraparound experience
  • Moto-Massage® Lounge, reclined and contoured for laying back with legs fully extended, with the Moto-Massage® DX sweeping jet over the back
  • Bucket Seat, single contoured seat shaped to cradle the body
  • Bench Seats, upright with extra room to shift positions for varied hydrotherapy

The Envoy ships with FreshWater® IQ Ready Salt System included, the salt-generation hardware is fitted at the factory. The system uses a disposable titanium cartridge to generate chlorine from salt, sustaining clean, soft, natural-feeling water without harsh chemical odors. The system is engineered to hold water balance for up to a full year between full drain-and-refill cycles. FreshWater® IQ Smart Monitoring + Dosing (hourly chemistry monitoring with precision dosing instructions through the Hot Spring Spas App) is offered as an optional upgrade.

Water Care SpecificationValue
Standard systemFreshWater® IQ Ready Salt System (included)
Smart monitoringFreshWater® IQ Smart Monitoring + Dosing (optional upgrade)
Filtration100% No-Bypass Filtration with High-Flow Tri-X® Filters; Dual-Action Filtration
Effective filtration area325 sq. ft.
Filter design noteAll water passes through filters during jet operation (no bypass)
  • Multiple layers of urethane foam insulation that fully encapsulate the spa shell
  • Insulated polymeric base pan that creates a heat-trapping air space against the ground
  • Patented Pump Shroud that captures heat from the equipment compartment and transfers it to the water
  • No-Fault® 4,000 W heater at 230 V
  • SilentFlo 5000® circulation pump that uses less power than a 40-watt light bulb during continuous filtration
  • CEC and APSP 14 compliant, meets California Energy Commission and Association of Pool & Spa Professionals 14 portable spa energy efficiency standards
  • Polymeric substructure, Hot Spring states this construction "will never rust or rot"
  • IQ 2020® Color LCD Touchscreen, the main control panel
  • Diagnostic / Ready Light, at-a-glance status indicator
  • Hot Spring Spas App, optional, via the Connected Spa Kit. Adds remote temperature control, water-care alerts (with FreshWater® IQ Smart Monitoring), and diagnostic monitoring
  • Customizable LED Zone Lighting, interior lighting in multiple controllable zones
  • Multi-Color Exterior LED with Timer, exterior cabinet lighting
  • BellaFontana® Water Feature, three illuminated arcs of water; the Highlife signature water feature
Cover & Accessory SpecificationValue
CoverWeatherPro™ 4" Tapered Core with Hinge Seal (custom-fit)
Cover colorsBlack, Gray, Shadow, Storm
Cover liftersCoverCradle®, CoverCradle II, UpRite®, Lift 'n Glide®
StepsHighlife® Series Steps
Ozone systemOptional
  • Wireless Music System, optional add-on
  • Subwoofer, optional add-on for deeper low-end response

Hot Spring publishes the Envoy's warranty terms explicitly. Seven Seas honors and processes warranty claims for every Envoy sold:

Warranty ComponentCoverage
Structure7 years
Shell surface7 years
Cabinet5 years
No-leak plumbing5 years
No-Fault® heater5 years
Components5 years
Interior lighting2 years

The 7-year structure and shell warranty is among the longest in Hot Spring's lineup and exceeds the warranty terms on the Limelight® Series and Hot Spot® Series.

Hydrotherapy Experience, What an Envoy Soak Feels Like

The Envoy centers on the combination of the Moto-Massage® Lounge and the Captain's Chair. Reclining in the lounger with legs fully extended, the patented Moto-Massage® DX sweeps two streams of water up and down the entire back from neck to lower spine. Moving to the Captain's Chair, described by Hot Spring as "deeply sculpted to wrap you in relaxing comfort", places the body in a contoured wraparound where 55 jets distribute across the back, neck, shoulders, and feet. Comfort Control® lets the user dial that pressure from a soft touch to a powerful working massage without changing seats, and SmartJet® distributes flow to whichever seats are occupied so a solo user can claim the lounger or the Captain's Chair and route full pressure there. With 55 jets across eight jet types, including five JetStream®, 30 Directional Precision®, and the patented Moto-Massage® DX, the Envoy delivers the most varied hydrotherapy session in the 5-seat Highlife lineup. One owner cited by Hot Spring summed it up: "The captain's chair is wonderful for the back and the wrist. The back massage chair is like having a personal massage."

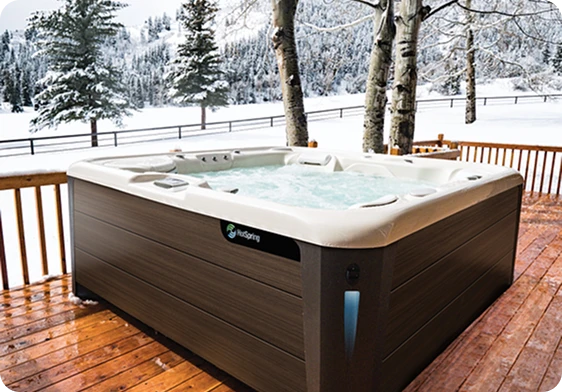

Envoy hot tub

See if the Envoy fits your space

Review the dimensions, seating layout, and water-care features with a Seven Seas advisor.

Related Spas in the Highlife® Series

Related SpaSeatsLoungeKey Differentiator
Grandee®7No (open seating)Largest Highlife, 49 jets, 7-person open seating with Cooldown Seat
Vanguard®6No (open seating)6-person open-seating Highlife in 7'3" square
Aria®5Yes5-person Highlife with Moto-Massage® Lounge in 7'3" square footprint
Envoy® (this model)5YesHighest jet count in 5-seat Highlife (55 jets), Moto-Massage® Lounge plus Captain's Chair
Sovereign®5YesRectangular 5-seat Highlife with lounge and Captain's Chair, fits tight spaces
Prodigy®5No (open seating)Mid-sized 5-person open-seating Highlife, 28 jets
Jetsetter®3YesCompact Highlife with lounger, 115 V/230 V convertible
Jetsetter® LX3YesCompact Highlife premium with lounger, 230 V, 30 jets

How the Envoy Compares to Other Hot Spring Spas Series

The Highlife Series sits at the top of the Hot Spring Spas lineup. From most to least premium: Highlife → Limelight → Hot Spot → Freeflow.

Highlife Series

Highlife® Series, premium top tier (Moto-Massage® DX, FreshWater® IQ Salt System included, BellaFontana® water feature, six cabinet finishes, 7-year structure and shell warranty). The Envoy lives here.

View Highlife Series Hot Tubs
Hot Spot Series

Hot Spot® Series, value tier (FiberCor® insulation, FreshWater® Salt System Ready not IQ, polyester filters with free-flow core, Wavemaster® jet pumps + SilentFlo 5000® circulation, simpler cover and accessory options, 5-year structure warranty, plug-and-play on most models)

View Hot Spot Series Hot Tubs
Freeflow Series

Freeflow® Series, entry tier (FROG® Sanitizing System Ready, polyester filters, rotomolded unibody cabinet, 2-Speed 1.5 HP jet pump, LCD screen control, 115 V plug-and-play standard, smallest capacities, simplest accessory ecosystem)

View Freeflow Series Hot Tubs

Seven Seas also carries the Caldera Spas brand, Hot Spring's sister Watkins Wellness line. The Caldera vs Hot Spring comparison covers how the two premium platforms approach hydrotherapy differently: Hot Spring builds the experience around Moto-Massage® DX and the IQ 2020® control system; Caldera builds it around the UltraMassage® lounge sequence, Atlas® Neck Massage, and the Advent® touchscreen. Both brands share the FreshWater® IQ family of salt-water sanitization. Either is an excellent choice, trying both side-by-side at a Seven Seas showroom is the fastest way to find the better fit for your back and your soak preferences.

Ready for a private Envoy wet test?

The Envoy is part of the lineup carried by Seven Seas Pools & Spas. Call ahead or stop by your local showroom to confirm current showroom availability. Visiting a showroom is the fastest way to compare the Captain's Chair against the Moto-Massage® Lounge, test the patented Moto-Massage® DX sweeping action, and see the Highlife cabinet finishes on the models currently on display. Call or visit your local Seven Seas Pools & Spas location to schedule a private wet-test soak appointment with the models currently on the floor.

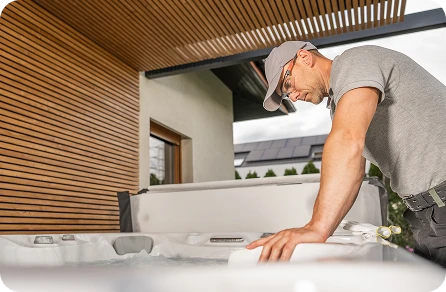

Installation and Delivery

The Envoy requires a 230 V / 50 amp / 60 Hz circuit wired to a GFCI sub-panel, the sub-panel is included with the spa.

Site requirements:

Installation and Delivery
  • Level reinforced concrete pad, deck capable of supporting 5,455 lbs filled, or a prepared spa pad

  • 24" minimum service clearance on at least one side for equipment access

  • Standard delivery to ground-level installations

Seven Seas offers full delivery and installation service including site assessment, electrical coordination with a licensed electrician, and post-fill water balancing.

Water Care and Ongoing Maintenance

With the FreshWater® IQ Ready Salt System included, week-to-week maintenance reduces to monitoring water clarity and replacing the salt cartridge when prompted. Adding the optional Smart Monitoring + Dosing upgrade brings hourly chemistry monitoring and step-by-step dosing instructions through the Hot Spring Spas App, useful for owners who want minimal hands-on maintenance.

The 100% no-bypass Tri-X® filtration with Dual-Action Filtration means every drop of water passes through the filters during jet operation, unlike spas that bypass their filters when jets are running. Filter cleaning runs on the same monthly cadence as any high-flow filter cartridge, see the filter care guide in the owners area. The full salt-water cycle can hold water balance for "up to a full year" between drain-and-refill cycles when properly maintained.

For broader guidance, the salt-water hot tub care guide in the owners area covers cartridge replacement, ozone interaction, and seasonal draining intervals.

Frequently Asked Questions

Yes, and a family of 4 will appreciate having one seat free for guests plus the option to rotate between the lounger and the Captain's Chair. The Envoy seats five adults across a Captain's Chair, a Moto-Massage® Lounge, a Bucket Seat, and Bench Seats. The lounger is the standout for individual soaks; the Captain's Chair is the choice for full-body wraparound coverage with multiple jet types working at once. For households of 2 or 3 only, the smaller Jetsetter® or Jetsetter® LX offer the same Highlife premium at a smaller footprint.

The Highlife Series is engineered for low operating cost via the multi-layer urethane foam insulation, insulated polymeric base pan, patented Pump Shroud heat capture, and SilentFlo 5000® circulation pump (which uses less power than a 40-watt bulb). Actual monthly electrical cost depends on local utility rates, ambient temperature, and use frequency. The CEC and APSP 14 certifications verify the Envoy meets strict energy efficiency standards. Ask a Seven Seas advisor for an operating-cost estimate based on your climate and electricity rate.

No. The Envoy is hardwired 230 V / 50 amp / 60 Hz only. For a 115 V plug-and-play Highlife option, see the Jetsetter® which is convertible between 115 V and 230 V.

Both are five-seat Highlife hot tubs with a Moto-Massage® Lounge. The Aria® fits a 7'3" square footprint with 42 jets and uses a Bucket Seat alongside the lounger and Bench Seats. The Envoy is the larger 8'4" × 7'7" footprint with 55 jets, the highest 5-seat jet count Hot Spring builds, and adds a Captain's Chair to the seat lineup for a deeper-sculpted full-body wraparound. The Aria suits if you want the lounge experience in a more compact footprint; the Envoy suits if you want the lounge plus the Captain's Chair plus the maximum 5-seat Highlife jet count.

Both five-seat Highlife hot tubs include a Moto-Massage® Lounge and a Captain's Chair. The Envoy has 55 jets in an 8'4" × 7'7" square-ish footprint with two Wavemaster® jet pumps. The Sovereign® has 32 jets in a rectangular 6'8" × 7'9" footprint designed to "fit tight spaces" with one Wavemaster® jet pump. The Envoy is the maximum-hydrotherapy version; the Sovereign is the rectangular space-fit version with the same lounge + Captain's Chair seat lineup.

Yes, a WeatherPro™ 4" Tapered Core cover with hinge seal is included custom-fit to the spa. Cover colors include Black, Gray, Shadow, and Storm. Cover lifters are included options on the Envoy, choose from CoverCradle®, CoverCradle II, UpRite®, or Lift 'n Glide® depending on your installation clearance and preference.

The Envoy carries one of the longest warranties in the Hot Spring lineup, 7 years on the structure and shell surface, 5 years on the cabinet, no-leak plumbing, No-Fault® heater, and components, and 2 years on the interior lighting. See the [Warranty](#warranty) section above for the full coverage table. Seven Seas processes all warranty claims on Envoys sold from our locations.

Standard Envoy delivery from Seven Seas runs 4-8 weeks from order, depending on current Hot Spring Spas production lead times and the cabinet finish + shell color combination you select. Inventory in stock at Seven Seas locations can ship within a week.

Moto-Massage® DX is patented to Hot Spring Spas. Two streams of water physically sweep up and down the back from a single stationary seat, a moving-jet pattern distinctive to the Hot Spring lineup. Other premium brands take different hydrotherapy approaches: Caldera Spas, for example, builds its experience around the UltraMassage® lounge (a choreographed multi-zone sequence in a recline lounger) and the Atlas® Neck Massage (above-water jets contoured to the neck and shoulders). Both deliver excellent therapeutic massage, they simply feel quite different. Seven Seas carries both brands. Call or stop by your local Seven Seas Pools & Spas location to see which Caldera and Hot Spring models are currently on display and available for comparison.
