Beam™ Hot Tub

Limelight® Series by Hot Spring Spas

The Beam™ is a four-person compact hot tub in the Limelight® Series, the mid-tier hydrotherapy line manufactured by Hot Spring Spas, a Watkins Wellness brand. The Beam is the premium Limelight spa for tighter spaces, four-seat hydrotherapy with a varied jet mix in a compact footprint. Measuring 6'8" × 6'8" with a 295-gallon water capacity, the Beam is the smallest Limelight model and the only Limelight offered with a 115 V plug-and-play electrical configuration, convertible to 230 V hardwired for higher-power operation. Hydrotherapy runs through a single Wavemaster® 7000 jet pump and a SilentFlo 5000® circulation pump, with FreshWater® Salt System Ready plumbing for optional salt-water sanitization and 100% no-bypass dual-action Tri-X® filtration. The Beam is sold and serviced through Seven Seas Pools & Spas.

Starting at $206.10/month*

View All Limelight® Series Hot Tubs

Features At A Glance

Capacity

4 adults (four deeply contoured Bucket Seats)

Footprint

6'8" × 6'8" × 33" tall (203 × 203 × 84 cm)

Jets

19 total across 4 jet types

Water Care

FreshWater® Salt System Ready (Smart Monitoring + Dosing optional)

Beam™ Hot Tub Details

Heater: No-Fault® 1,500 W (115 V) or 6,000 W (230 V)
Electrical: 115 V / 20 amp (Plug-N-Play) or 230 V / 50 amp (Convertible), GFCI protected power cord (115 V) or sub-panel (230 V) included
Water Care: FreshWater® Salt System Ready (Smart Monitoring + Dosing optional)
Filtration: 100% No-Bypass Dual-Action with High-Flow Tri-X® Filters (100 sq. ft. effective)
Insulation: FiberCor® high-density (manufacturer notes density four times greater than half-pound foam used in most spas)
Warranty: 7-year structure, 5-year shell / cabinet / plumbing / heater / components, 3-year interior lighting

Who the Beam™ Is Built For

The Beam fits households that want a compact 4-person hot tub with mid-tier Limelight features and the option of a 115 V plug-and-play install. At 6'8" × 6'8" × 33" tall, the Beam is the smallest Limelight footprint, and the only Limelight model that ships convertible between 115 V plug-and-play and 230 V hardwired. That makes the Beam the natural Limelight choice if you don't want to run a dedicated 230 V circuit, or who want to start on 115 V and convert to 230 V later as installation circumstances change. Hot Spring features one customer voice on the product page: "The Beam is a great hot tub with premium features, at a price you can't get in other brands of hot tubs."

It is not the right choice if you:

Need 5+ seat capacity, see the Flair® (6-seat with lounge) or any 7-seat Limelight (Pulse®, Flash™, Prism™)
Want a recline lounger, the Beam uses four deeply contoured Bucket Seats with no lounge. For a Limelight lounger see the Flair® or Prism™
Want the largest jet count, the Beam has 19 jets, the lowest in the Limelight Series. Larger Limelight models range from 41 to 73 jets
Want the patented Moto-Massage® DX experience, that jet is exclusive to the Highlife® Series

Want the Beam experience?

Explore the Beam with Seven Seas Pools & Spas and compare the seating, massage, and water-care features in person.

Choose Your Colors

Available Cabinet Styles

Coastal Gray

Espresso

Sable

Available Shell Styles

I'd Like To Talk To Someone About Getting A Beam

Fill out this form and we will be in contact with you shortly about how you can begin your journey to enjoying a Beam.

First Name

Last Name

E-Mail Address

Phone

Select Preferred Form of Contact

Phone Email

Select Best Time To Contact

Morning Afternoon

Select Store Closest To You

Clarion Cranberry Township DuBois Hermitage North Fayette

Specifications

Spa Specification	Value
Seating capacity	4 adults (four deeply contoured Bucket Seats)
Length × Width × Height	6'8" × 6'8" × 33" (203 × 203 × 84 cm)
Water capacity	295 gallons (1,115 liters)
Weight (dry)	700 lbs (320 kg)
Weight (filled)	3,860 lbs (1,750 kg), includes water and 175 lb adult per seat

The Beam uses a single Wavemaster® 7000 jet pump, one-speed, 1.65 HP continuous duty / 3.5 HP breakdown torque, paired with a SilentFlo 5000® circulation pump for low-noise filtration. The 19 jets distribute across four engineered jet types:

Jet Type	Count	Targeted Area
XL Directional	1	Deep muscle relief, "deep, penetrating massage"
Standard Single Rotary	2	"Soothes muscles with a rhythmic, circular motion"
Standard Directional	2	Adjustable directional pressure
Directional Precision®	14	"Adjustable up, down, right and left for pinpoint muscle treatment"

Comfort Control®, main intensity dial that lets users move "from a soft touch to a powerful massage" without leaving the seat
SmartJet® System, selectively distributes water flow to specific jet groups and seats, so individual users can boost or reduce pressure in their position
Four deeply contoured Bucket Seats, "shaped to comfortably cradle the body" for a long relaxing soak. The Beam does not include a Bench Seat or Cooldown Seat, every seated position is a Bucket Seat

The Beam is FreshWater® Salt System Ready, meaning the spa is engineered to accept the FreshWater® salt sanitization platform, the system itself is sold separately rather than included standard. When fitted, the system "automatically generates chlorine from salt for soft, natural-feeling water without harsh odors, itchy skin, or irritated eyes." FreshWater® IQ Smart Monitoring + Dosing (hourly chemistry monitoring and step-by-step dosing instructions through the Hot Spring Spas App) is offered as a further optional upgrade.

Water Care Specification	Value
Standard system	FreshWater® Salt System Ready (system sold separately)
Smart monitoring	FreshWater® IQ Smart Monitoring + Dosing (optional)
Filtration	100% No-Bypass Dual-Action Filtration with High-Flow Tri-X® Filters
Effective filtration area	100 sq. ft.
Filter design note	Two-filter Dual-Action design, dedicated filters for circulation and jet pumps

FiberCor® high-density insulation, Hot Spring notes the density is "four times greater than the half-pound foam used in most spas"
Polymeric substructure with polyethylene sealed bottom, protects the underside of the spa from ground moisture
Patented Pump Shroud that captures heat from the equipment compartment and transfers it to the water
No-Fault® heater, 1,500 W on 115 V or 6,000 W on 230 V depending on configuration
SilentFlo 5000® circulation pump that runs continuously on minimal energy
CEC and APSP 14 compliant, meets California Energy Commission and Association of Pool & Spa Professionals 14 portable spa energy efficiency standards

IQ 2020® Color LCD Control, the main control panel
Diagnostic / Ready Light, at-a-glance status indicator
Hot Spring Spas App, optional, via the Connected Spa Kit. Adds remote temperature control, water-care alerts (with FreshWater® IQ Smart Monitoring), and diagnostic monitoring
Virtual View™ AR app compatible, preview the Beam in your backyard before purchase

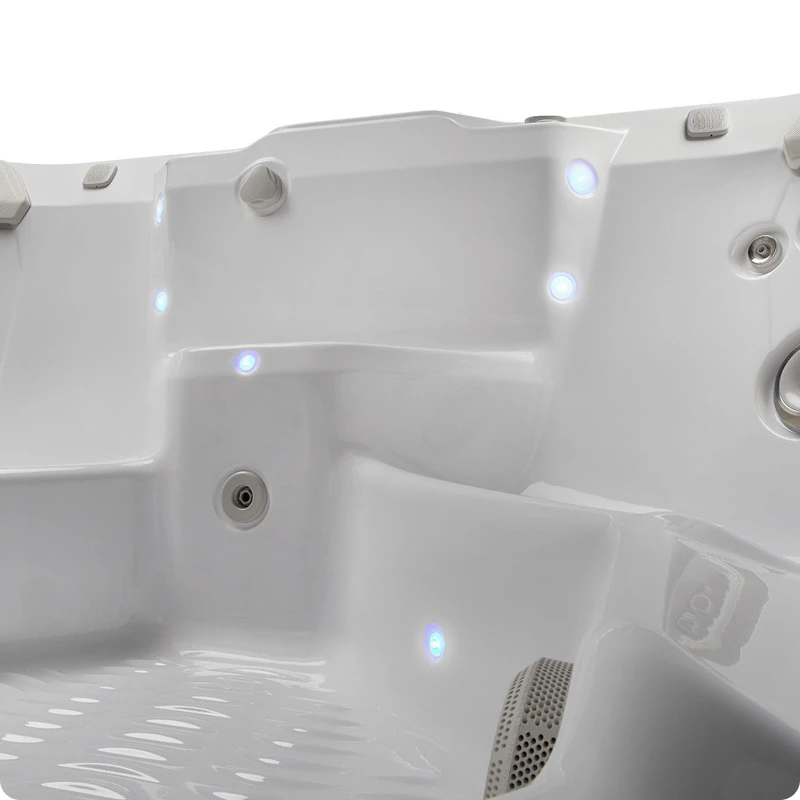

Multi-Color LED Points of Light, interior lighting accents the shell contours
Multi-Color Exterior LED with Timer, exterior cabinet lighting
Vidro® Backlit Ribbon Waterfall, the Limelight signature water feature, a backlit ribbon of water with integrated lighting

Cover & Accessory Specification	Value
Cover	WeatherPro™ 4" Tapered Core with Hinge Seal (custom-fit)
Cover colors	Storm, Black
Cover lifters (optional)	CoverCradle®, CoverCradle II, UpRite®, Lift 'n Glide®
Steps (optional)	Limelight® Series Steps
Entertainment (optional)	Wireless Music System, Subwoofer
Sanitation (optional)	Ozone System

Hot Spring publishes the Beam's warranty terms explicitly. Seven Seas honors and processes warranty claims for every Beam sold:

Warranty Component	Coverage
Structure	7 years
Shell surface	5 years
Cabinet	5 years
No-leak plumbing	5 years
No-Fault® heater	5 years
Components	5 years
Interior light assembly	3 years

The 7-year structure warranty matches the rest of the Limelight® Series. The shell-surface coverage is one tier shorter than the Highlife® Series (which carries 7 years on shell surface) and one tier longer than the Hot Spot® Series.

Hydrotherapy Experience, What a Beam Soak Feels Like

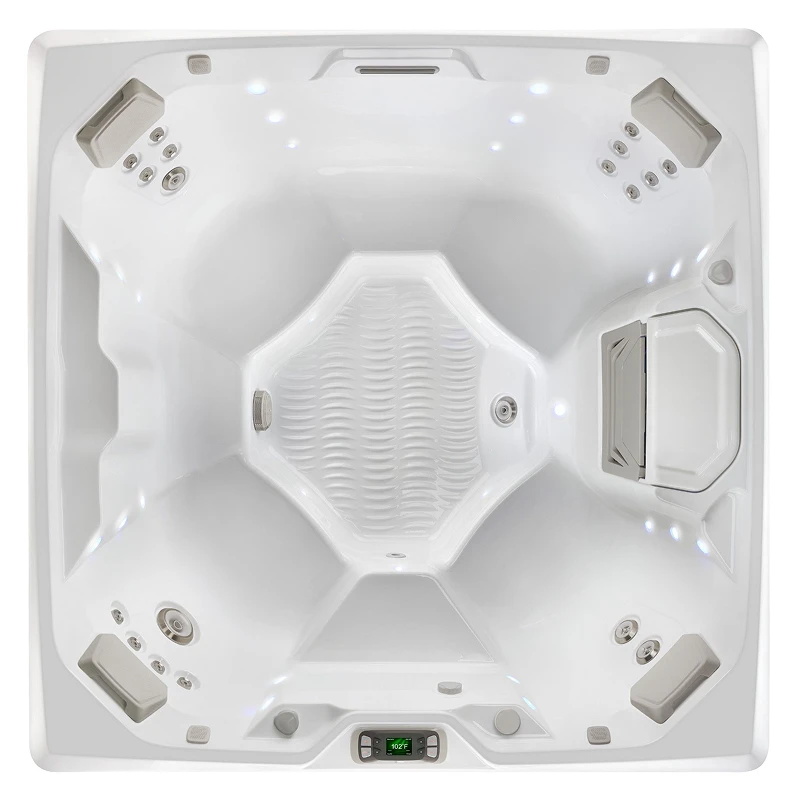

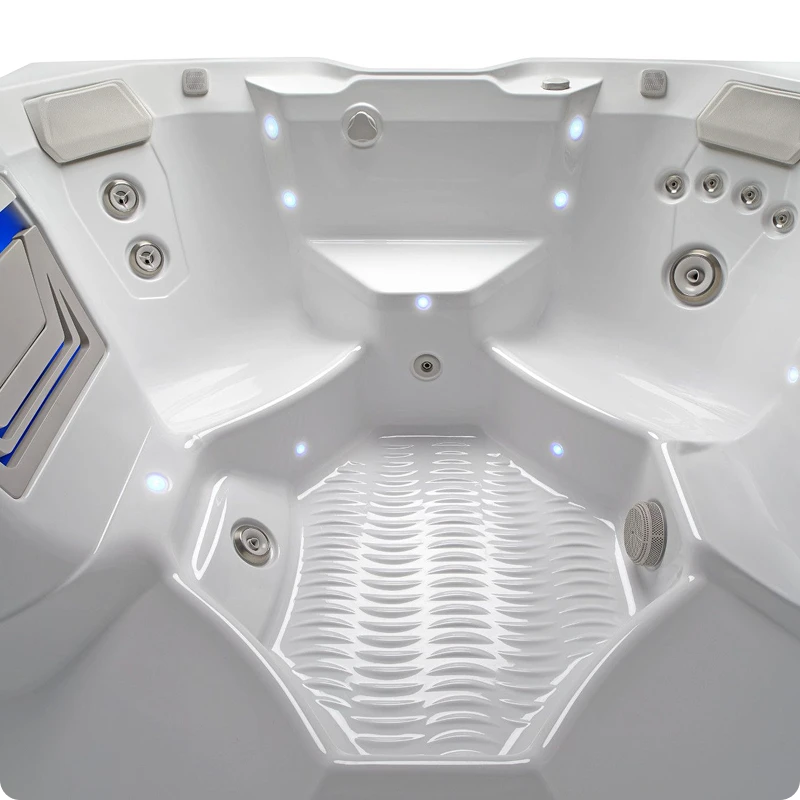

The Beam centers on four deeply contoured Bucket Seats, every seated position cradles the body in a sculpted shape engineered for a long relaxing soak. Without a lounge or Bench Seat, the geometry stays compact and intimate; four bathers each get a dedicated, identical seat experience. The jet system targets specific muscle groups from neck to shoulders, back, wrists, calves, and feet. The spa's flagship XL Directional jet delivers deep muscle relief, paired with two Standard Single Rotary jets (rhythmic circular motion), two Standard Directional jets, and 14 adjustable Directional Precision® jets (adjustable up, down, right, and left for pinpoint muscle treatment). Comfort Control® dials the overall intensity from a soft touch to a powerful massage; SmartJet® distributes flow to whichever seat is occupied, particularly useful in a four-seat spa where solo or couple use is common.

See if the Beam fits your space

Review the dimensions, seating layout, and water-care features with a Seven Seas advisor.

Related Spas in the Limelight® Series

Related Spa	Seats	Lounge	Key Differentiator
Beam™ (this model)	4	No (4 Bucket Seats)	Smallest Limelight, 6'8" × 6'8", 115 V plug-and-play option
Flair®	6	Yes	6-seat lounge configuration in 7' × 7' footprint
Flash™	7	No	7-seat open-seating in 7' × 7' footprint, jetted footpod
Pulse®	7	No	Largest open-seating Limelight, 49 jets, central Foot Therapy pod
Prism™	7	Yes	Largest Limelight, 73 jets, JetStream® XL, lounge + Captain's Chair

How the Beam Compares to Other Hot Spring Spas Series

The Limelight Series sits in the middle of the Hot Spring Spas lineup. From most to least premium: Highlife → Limelight → Hot Spot → Freeflow.

Highlife® Series, premium top tier (Moto-Massage® DX, FreshWater® IQ Salt System included standard, BellaFontana® water feature, multi-layer urethane foam insulation, 7-year structure and shell warranty). The compact Highlife alternative to the Beam is the Jetsetter® (3-seat with lounge)

View Highlife Series Hot Tubs

Limelight® Series, mid tier. The Beam lives here. Defined by FiberCor® high-density insulation, Vidro® Backlit Ribbon Waterfall, Multi-Color LED Points of Light, and 115 V plug-and-play optionality on the Beam specifically

View Limelight Series Hot Tubs

Hot Spot® Series, value tier (FreshWater® Salt System Ready, polyester filters, Wavemaster® jet pumps + SilentFlo 5000® circulation, 5-year structure warranty, plug-and-play on most models). Several Hot Spot models also offer 115 V plug-and-play

View Hot Spot Series Hot Tubs

Freeflow® Series, entry tier (FROG® Sanitizing System Ready, polyester filters, rotomolded unibody cabinet, 2-Speed 1.5 HP jet pump, LCD screen control, 115 V plug-and-play standard, smallest capacities, simplest accessory ecosystem)

View Freeflow Series Hot Tubs

Seven Seas also carries the Caldera Spas brand, Hot Spring's sister Watkins Wellness line. Other premium brands take different hydrotherapy approaches: Caldera Spas, for example, builds its experience around the UltraMassage® lounge (a choreographed multi-zone sequence in a recline lounger) and the Atlas® Neck Massage (above-water jets contoured to the neck and shoulders). Both deliver excellent therapeutic massage, they simply feel quite different. Seven Seas carries both brands. Call or stop by your local Seven Seas Pools & Spas location to see which Caldera and Hot Spring models are currently on display and available for comparison. The Caldera vs Hot Spring comparison covers how the platforms differ in detail.

Ready for a private Beam wet test?

The Beam is part of the lineup carried by Seven Seas Pools & Spas. Call ahead or stop by your local showroom to confirm current showroom availability. Visiting a showroom is the fastest way to compare the four-seat Bucket configuration against the larger lounge-equipped Limelight models, and to see the Limelight shell colors and cabinet finishes on the models currently on display. Call or visit your local Seven Seas Pools & Spas location to schedule a private wet-test soak appointment with the models currently on the floor.

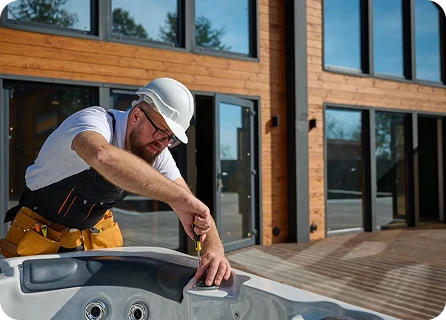

Installation and Delivery

The Beam is the only Limelight model with a convertible electrical configuration:

115 V / 20 amp Plug-N-Play, connects to a standard 115 V outlet via a GFCI-protected power cord. The 1,500 W heater operates at lower power, meaning slower heat-up and a maximum jet+heat draw constrained by the 20 amp circuit. Suitable for installations where running a dedicated 230 V line is impractical
230 V / 50 amp Convertible, hardwired to a GFCI sub-panel (included). The 6,000 W heater operates at full power for faster heat-up and full simultaneous jet operation

Site requirements for either configuration:

Level reinforced concrete pad, deck capable of supporting 3,860 lbs filled, or a prepared spa pad
24" minimum service clearance on at least one side for equipment access
Standard delivery to ground-level installations

Seven Seas offers full delivery and installation service including site assessment, electrical coordination with a licensed electrician for 230 V conversion, and post-fill water balancing.

Water Care and Ongoing Maintenance

With FreshWater® Salt System Ready plumbing, the Beam accepts the FreshWater® salt-water sanitization platform as an optional add-on at delivery or any time after. When fitted, week-to-week maintenance reduces to monitoring water clarity and replacing the salt cartridge when prompted. Adding Smart Monitoring + Dosing brings hourly chemistry monitoring and step-by-step dosing instructions through the Hot Spring Spas App.

The 100% no-bypass dual-action Tri-X® filtration uses two filters, dedicated to the circulation pump and jet pumps, so every drop of water passes through filtration during operation. Filter cleaning runs on the same monthly cadence as any high-flow filter cartridge, see the filter care guide in the owners area.

For broader guidance, the salt-water hot tub care guide in the owners area covers cartridge replacement, ozone interaction, and seasonal draining intervals.

Frequently Asked Questions

Yes, the Beam is one of the strongest 4-seat options for couples or small households. Two bathers each get a Bucket Seat with full jet coverage and the SmartJet® System concentrates flow on the occupied seats. The compact 6'8" × 6'8" footprint and 295-gallon water capacity also keep heating and water-balance maintenance proportionally low.

The Limelight Series is engineered for low operating cost via FiberCor® high-density insulation (engineered for four times the density of half-pound foam used in most spas), the patented Pump Shroud heat capture, and the SilentFlo 5000® circulation pump. The Beam's 295-gallon capacity is the smallest in the Limelight Series, which generally translates to lower per-month heating cost than the larger Limelight models. Actual monthly electrical cost depends on local utility rates, ambient temperature, use frequency, and whether the spa runs at 115 V or 230 V. The CEC and APSP 14 certifications verify the Beam meets strict energy efficiency standards.

Yes, and the Beam is the only Limelight model that ships convertible. On 115 V / 20 amp Plug-N-Play, the Beam connects to a standard outlet through a GFCI-protected power cord. On 230 V / 50 amp Convertible, the spa is hardwired to a GFCI sub-panel for full-power heat and jet operation. Most 115 V households eventually convert to 230 V to gain the faster heat-up of the 6,000 W heater; some keep 115 V indefinitely.

No. The Beam uses four deeply contoured Bucket Seats with no Bench Seat, Cooldown Seat, or Lounge. Every seated position is a sculpted bucket shape. For a Limelight lounger see the Flair® (6-seat with lounge) or Prism™ (7-seat with lounge).

On the Beam, the spa is FreshWater® Salt System Ready, a slightly different tier than the FreshWater® IQ Ready plumbing on the larger Limelight models like the Pulse, Flair, Flash, and Prism. Both accept Hot Spring salt-water sanitization, but the IQ-tier variants on the larger models are engineered for the smarter monitoring-and-dosing platform out of the box. On the Beam, FreshWater® IQ Smart Monitoring + Dosing is still available as a separate optional upgrade.

Yes, a WeatherPro™ 4" Tapered Core cover with hinge seal is included custom-fit to the spa. Cover colors are Storm and Black. Cover lifters are optional add-ons: choose from CoverCradle®, CoverCradle II, UpRite®, or Lift 'n Glide® depending on your installation clearance and preference.

The Beam carries a 7-year structure warranty, 5 years on shell surface, cabinet, no-leak plumbing, No-Fault® heater, and components, and 3 years on the interior light assembly. See the Warranty section above for the full coverage table. Seven Seas processes all warranty claims on Beam spas sold from our locations.

Yes, with proper ventilation and drainage. Indoor installations require a moisture-resistant floor structure rated for 3,860 lbs and active humidity ventilation. The 115 V plug-and-play option simplifies indoor installs that don't have a 230 V circuit available. See the indoor installation guide for full requirements.

No, Hot Spring makes smaller models in other series, including the Jetsetter® (3-seat lounger) in the Highlife Series. But within the Limelight Series, the Beam is the smallest model and the only one offered with 115 V plug-and-play.

Where to See the Beam™ in Person
