Pulse® Hot Tub

Limelight® Series by Hot Spring Spas

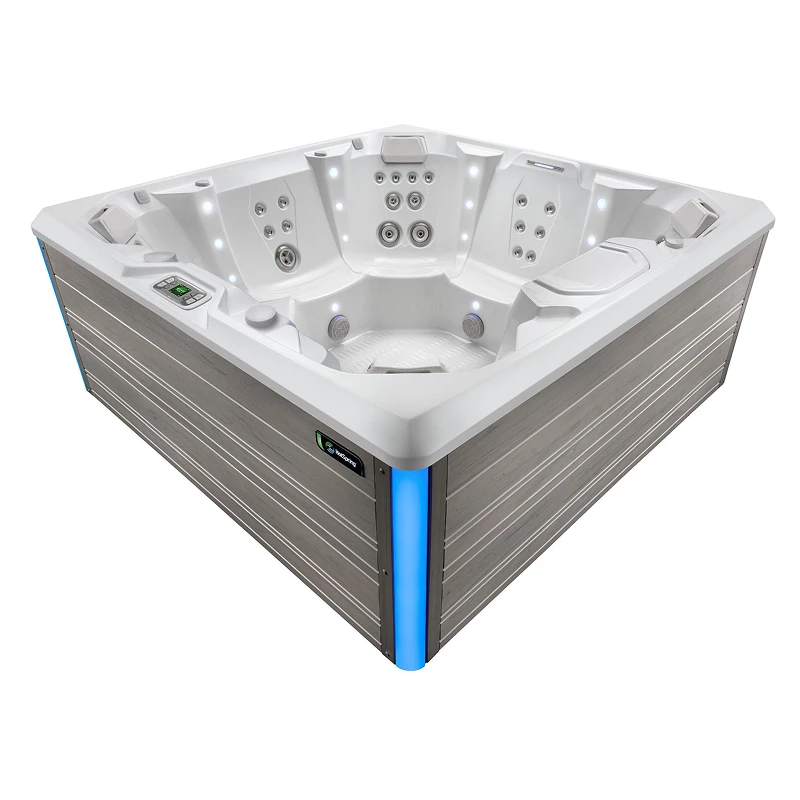

The Pulse® is a seven-person open-seating hot tub in the Limelight® Series, the mid-tier hydrotherapy line manufactured by Hot Spring Spas, a Watkins Wellness brand. Measuring 7'5" × 7'5" with a 445-gallon water capacity, the Pulse centers on a central Foot Therapy pod with jets engineered to hit everyone's feet simultaneously while seven adults soak side by side, making it an ideal conversation hub. The 49-jet system is driven by two Wavemaster® 9000-class pumps and a SilentFlo 5000® circulation pump, sanitized through the FreshWater® IQ Ready platform with optional 100% no-bypass Tri-X® dual-action filtration. The Pulse is sold and serviced through Seven Seas Pools & Spas.

Starting at $269.40/month*

View All Limelight® Series Hot Tubs

Features At A Glance

Capacity

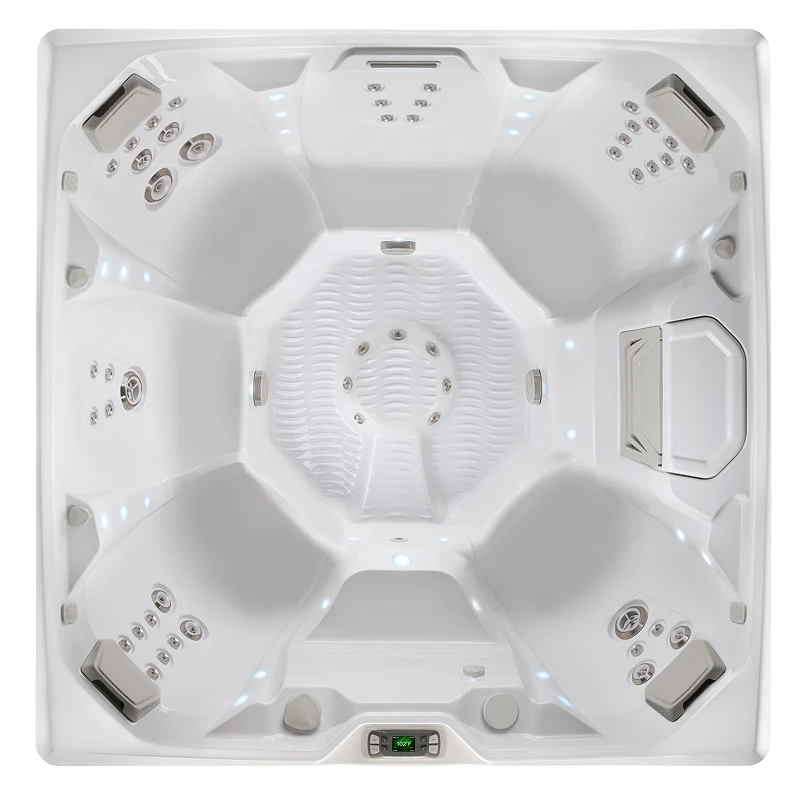

7 adults (Bucket Seats, Bench Seats, central Foot Therapy pod, elevated Cooldown Seat)

Footprint

7'5" × 7'5" × 38" tall (226 × 226 × 97 cm)

Jets

49 total across 7 jet types

Water Care

FreshWater® IQ Ready (Smart Monitoring + Dosing optional)

Pulse Hot Tub Details

Heater: No-Fault® 4,000 W (230 V)
Electrical: 230 V / 50 amp / 60 Hz (GFCI sub-panel included)
Water Care: FreshWater® IQ Ready (Smart Monitoring + Dosing optional)
Filtration: 100% No-Bypass Dual-Action with High-Flow Tri-X® Filters (100 sq. ft. effective)
Insulation: FiberCor® high-density (manufacturer notes density four times greater than half-pound foam used in most spas)
Warranty: 7-year structure, 5-year shell / cabinet / plumbing / heater / components, 3-year interior lighting

Who the Pulse® Is Built For

The Pulse fits households that want seven seats, open seating, and a central Foot Therapy pod, large family soaks, frequent entertaining, and a conversational layout where everyone's feet meet at the same set of jets. The Pulse is built as a conversation hub: every seat shares the same focal point, and the no-lounge geometry keeps the group facing each other. Limelight households get the mid-tier Hot Spring chassis (FiberCor® insulation, Vidro® Backlit Ribbon Waterfall, IQ 2020® Color LCD Control) without paying for the Highlife premium of standard-included salt water and Moto-Massage® DX. The Pulse is the Limelight model engineered for the largest open-seating gatherings.

It is not the right choice if you:

Want a recline lounger, the Pulse uses open seating with no lounge. For a Limelight lounger, see the Flair® or Prism™
Need a 115 V plug-and-play install, the Pulse is hardwired 230 V / 50 amp only. The smaller Beam™ is the only Limelight model offered as plug-and-play
Want the patented Moto-Massage® DX experience, that jet is exclusive to the Highlife® Series (see the Grandee®)
Need a small footprint, at 7'5" × 7'5" the Pulse is among the larger Limelight models. For a more compact Limelight see the Beam™

Want the Pulse experience?

Explore the Pulse with Seven Seas Pools & Spas and compare the seating, massage, and water-care features in person.

Choose Your Colors

Available Cabinet Styles

Coastal Gray

Espresso

Sable

Available Shell Styles

I'd Like To Talk To Someone About Getting A Pulse

Fill out this form and we will be in contact with you shortly about how you can begin your journey to enjoying a Pulse.

First Name

Last Name

E-Mail Address

Phone

Select Preferred Form of Contact

Phone Email

Select Best Time To Contact

Morning Afternoon

Select Store Closest To You

Clarion Cranberry Township DuBois Hermitage North Fayette

Specifications

Spa Specification	Value
Seating capacity	7 adults (open seating with central Foot Therapy pod, Bucket Seats, Bench Seats, Cooldown Seat)
Length × Width × Height	7'5" × 7'5" × 38" (226 × 226 × 97 cm)
Water capacity	445 gallons (1,685 liters)
Weight (dry)	1,015 lbs (460 kg)
Weight (filled)	5,950 lbs (2,700 kg), includes water and 175 lb adult per seat

The Pulse uses two Wavemaster® jet pumps, the 9200 (two-speed) and the 9000 (one-speed), both rated 2.5 HP continuous duty / 5.2 HP breakdown torque, paired with a SilentFlo 5000® circulation pump for low-noise filtration. The 49 jets distribute across seven engineered jet types, each engineered for a specific muscle group and seat experience:

Jet Type	Count	Targeted Area
XL Dual Rotary	1	Large rotating dual-stream pressure
XL Single Rotary	1	Large rotating single-stream pressure
XL Directional	2	Deep muscle relief, "deep, penetrating massage"
Standard Single Rotary	4	"Soothes muscles with a rhythmic, circular motion"
Standard Directional	2	Adjustable directional pressure
Rotary Precision®	4	"Like the fingers of a masseuse"
Directional Precision®	35	"Adjustable up, down, right and left for pinpoint muscle treatment"

Foot Therapy, central foot pod with jets engineered to hit everyone's feet simultaneously while seated, anchoring the Pulse as a conversation hub
Comfort Control®, main intensity dial that lets users move "from a soft touch to a powerful massage" without leaving the seat
SmartJet® System, selectively distributes water flow to specific jet groups and seats, so individual users can boost or reduce pressure in their position
Bucket Seats, "Shaped to comfortably cradle your body for a long relaxing soak"
Bench Seats, "Upright to support your back plus extra room to change your position for more hydrotherapy options"
Cooldown Seat, "Elevated to help you adjust body temperature when entering and exiting the spa"

The Pulse is FreshWater® IQ Ready, meaning the spa is engineered to accept the FreshWater® IQ salt-water sanitization platform, the system itself is sold separately rather than included standard. When fitted, the system uses a disposable titanium cartridge to generate chlorine from salt, sustaining "soft, natural-feeling water" without ongoing chemical dosing. FreshWater® IQ Smart Monitoring + Dosing (hourly chemistry monitoring and step-by-step dosing instructions through the Hot Spring Spas App) is offered as a further optional upgrade.

Water Care Specification	Value
Standard system	FreshWater® IQ Ready (system sold separately)
Smart monitoring	FreshWater® IQ Smart Monitoring + Dosing (optional)
Filtration	100% No-Bypass Dual-Action Filtration with High-Flow Tri-X® Filters
Effective filtration area	100 sq. ft.
Filter design note	Two-filter Dual-Action design, dedicated filters for circulation and jet pumps

FiberCor® high-density insulation, Hot Spring notes the density is "four times greater than the half-pound foam used in most spas"
Polymeric substructure with polyethylene sealed bottom, protects the underside of the spa from ground moisture
Patented Pump Shroud that captures heat from the equipment compartment and transfers it to the water
No-Fault® 4,000 W heater at 230 V
SilentFlo 5000® circulation pump that runs continuously on minimal energy
CEC and APSP 14 compliant, meets California Energy Commission and Association of Pool & Spa Professionals 14 portable spa energy efficiency standards

IQ 2020® Color LCD Control, the main control panel
Diagnostic / Ready Light, at-a-glance status indicator
Hot Spring Spas App, optional, via the Connected Spa Kit. Adds remote temperature control, water-care alerts (with FreshWater® IQ Smart Monitoring), and diagnostic monitoring

Multi-Color LED Points of Light, interior lighting accents the shell contours
Multi-Color Exterior LED with Timer, exterior cabinet lighting
Vidro® Backlit Ribbon Waterfall, the Limelight signature water feature, a backlit ribbon of water with integrated lighting

Cover & Accessory Specification	Value

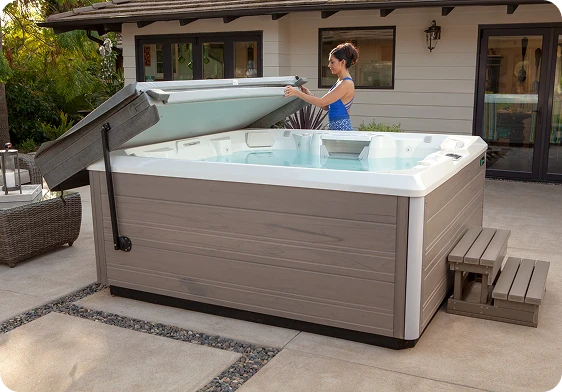

Cover	WeatherPro™ 4" Tapered Core with Hinge Seal (custom-fit)
Cover colors	Storm, Black
Cover lifters (optional)	CoverCradle®, CoverCradle II, UpRite®, Lift 'n Glide®
Steps (optional)	Limelight® Series Steps
Entertainment (optional)	Wireless Music System, Subwoofer
Sanitation (optional)	Ozone System

Hot Spring publishes the Pulse's warranty terms explicitly. Seven Seas honors and processes warranty claims for every Pulse sold:

Warranty Component	Coverage
Structure	7 years
Shell surface	5 years
Cabinet	5 years
No-leak plumbing	5 years
No-Fault® heater	5 years
Components	5 years
Interior light assembly	3 years

The 7-year structure warranty matches the rest of the Limelight® Series. The shell-surface coverage is one tier shorter than the Highlife® Series (which carries 7 years on shell surface) and one tier longer than the Hot Spot® Series.

Hydrotherapy Experience, What a Pulse Soak Feels Like

The Pulse centers the Foot Therapy pod as its signature experience. The central pod is engineered so that jets reach every seated bather's feet at once, turning a seven-person soak into a shared lower-body massage rather than a series of solo seats. Comfort Control® lets each user dial the overall pressure from a soft touch to a powerful massage, and SmartJet® distributes flow to whichever seats are occupied so a solo user gets full pressure in one seat without diluting it across the spa. The Bucket Seats cradle the body for longer soaks, the Bench Seats invite shifting position throughout a session, and the elevated Cooldown Seat supports body-temperature transitions during entry, exit, or extended evening sessions. With 49 jets across seven jet types, including XL Dual Rotary, XL Single Rotary, XL Directional for "deep muscle relief," Rotary Precision® "like the fingers of a masseuse," and 35 adjustable Directional Precision® jets, the Pulse delivers a varied hydrotherapy session geared toward groups.

See if the Pulse fits your space

Review the dimensions, seating layout, and water-care features with a Seven Seas advisor.

Related Spas in the Limelight® Series

Related Spa	Seats	Lounge	Key Differentiator
Pulse® (this model)	7	No (open seating)	Largest open-seating Limelight, 49 jets, central Foot Therapy pod
Prism™	7	Yes	Largest Limelight overall, 73 jets, JetStream® XL, lounge + Captain's Chair
Flash™	7	No	7-seat open-seating with jetted footpod, smaller footprint than Pulse
Flair®	6	Yes	6-seat lounge configuration in 7' × 7' footprint
Beam™	4	No	Smallest Limelight, 4 Bucket Seats, 115 V plug-and-play option

How the Pulse Compares to Other Hot Spring Spas Series

The Limelight Series sits in the middle of the Hot Spring Spas lineup. From most to least premium: Highlife → Limelight → Hot Spot → Freeflow.

Highlife® Series, premium top tier (Moto-Massage® DX, FreshWater® IQ Salt System included standard, BellaFontana® water feature, multi-layer urethane foam insulation, 7-year structure and shell warranty)

View Highlife Series Hot Tubs

Limelight® Series, mid tier. The Pulse lives here. Defined by FiberCor® high-density insulation, Vidro® Backlit Ribbon Waterfall, Multi-Color LED Points of Light, FreshWater® IQ Ready (rather than included), and Foot Therapy on select models

View Limelight Series Hot Tubs

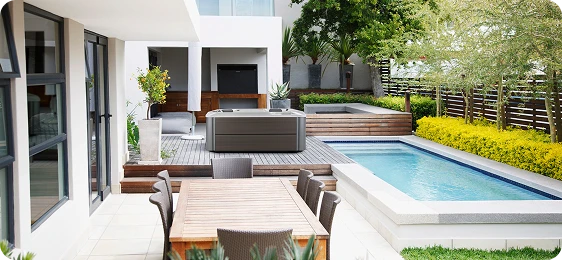

Hot Spot® Series, value tier (FreshWater® Salt System Ready, polyester filters, Wavemaster® jet pumps + SilentFlo 5000® circulation, 5-year structure warranty, plug-and-play on most models)

View Hot Spot Series Hot Tubs

Freeflow® Series, entry tier (FROG® Sanitizing System Ready, polyester filters, rotomolded unibody cabinet, 2-Speed 1.5 HP jet pump, LCD screen control, 115 V plug-and-play standard, smallest capacities, simplest accessory ecosystem)

View Freeflow Series Hot Tubs

Seven Seas also carries the Caldera Spas brand, Hot Spring's sister Watkins Wellness line. Other premium brands take different hydrotherapy approaches: Caldera Spas, for example, builds its experience around the UltraMassage® lounge (a choreographed multi-zone sequence in a recline lounger) and the Atlas® Neck Massage (above-water jets contoured to the neck and shoulders). Both deliver excellent therapeutic massage, they simply feel quite different. Seven Seas carries both brands. Call or stop by your local Seven Seas Pools & Spas location to see which Caldera and Hot Spring models are currently on display and available for comparison. The Caldera vs Hot Spring comparison covers how the platforms differ in detail.

Ready for a private Pulse wet test?

The Pulse is part of the lineup carried by Seven Seas Pools & Spas. Call ahead or stop by your local showroom to confirm current showroom availability. Visiting a showroom is the fastest way to compare seat ergonomics, test the central Foot Therapy pod, and see the Limelight shell colors and cabinet finishes on the models currently on display. Call or visit your local Seven Seas Pools & Spas location to schedule a private wet-test soak appointment with the models currently on the floor.

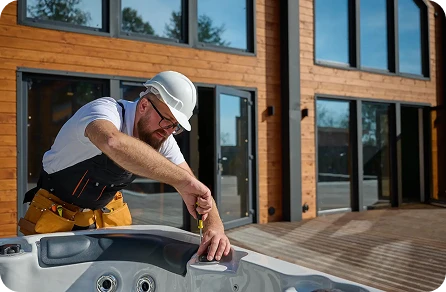

Installation and Delivery

The Pulse requires a 230 V / 50 amp / 60 Hz circuit wired to a GFCI sub-panel, the sub-panel is included with the spa.

Site requirements:

Level reinforced concrete pad, deck capable of supporting 5,950 lbs filled, or a prepared spa pad
24" minimum service clearance on at least one side for equipment access
Standard delivery to ground-level installations

Seven Seas offers full delivery and installation service including site assessment, electrical coordination with a licensed electrician, and post-fill water balancing.

Water Care and Ongoing Maintenance

With FreshWater® IQ Ready plumbing, the Pulse accepts the FreshWater® IQ salt-water sanitization platform as an optional add-on at delivery or any time after. When fitted, week-to-week maintenance reduces to monitoring water clarity and replacing the salt cartridge when prompted. Adding Smart Monitoring + Dosing brings hourly chemistry monitoring and step-by-step dosing instructions through the Hot Spring Spas App, useful for owners who want minimal hands-on maintenance.

The 100% no-bypass dual-action Tri-X® filtration uses two filters, dedicated to the circulation pump and jet pumps, so every drop of water passes through filtration during operation, unlike spas that bypass their filters when jets are running. Filter cleaning runs on the same monthly cadence as any high-flow filter cartridge, see the filter care guide in the owners area.

For broader guidance, the salt-water hot tub care guide in the owners area covers cartridge replacement, ozone interaction, and seasonal draining intervals.

Frequently Asked Questions

Yes, and a family of 4 will appreciate the room and the Foot Therapy pod. The Pulse seats seven, so four bathers each get a seat plus three free for guests, and the central foot pod gives every seated user simultaneous foot massage. For households of two or three only, the smaller Beam™ (4-person) or the Flair® (6-person with lounger) may fit better.

The Limelight Series is engineered for low operating cost via FiberCor® high-density insulation (engineered for four times the density of half-pound foam used in most spas), the patented Pump Shroud heat capture, and the SilentFlo 5000® circulation pump. Actual monthly electrical cost depends on local utility rates, ambient temperature, and use frequency. The CEC and APSP 14 certifications verify the Pulse meets strict energy efficiency standards. Ask a Seven Seas advisor for an operating-cost estimate based on your climate and electricity rate.

No. The Pulse is hardwired 230 V / 50 amp / 60 Hz only. For a 115 V plug-and-play Limelight option, see the smaller Beam™, which ships convertible between 115 V plug-and-play and 230 V hardwired.

No. The Pulse is open seating with no lounge, the geometry is built around the central Foot Therapy pod and seven shared seats. For a Limelight lounger, see the Flair® (6-seat with lounge) or the Prism™ (7-seat with lounge plus a sculpted Captain's Chair).

On the Pulse and most Limelight models, the spa is FreshWater® IQ Ready, meaning the plumbing is engineered to accept the salt system, which is purchased separately. On the Highlife® Series (e.g. the Grandee®), the FreshWater® IQ Salt System is included as standard. Both deliver the same soft, natural-feeling salt water, the difference is whether the hardware ships in the box or is added at point of sale.

Yes, a WeatherPro™ 4" Tapered Core cover with hinge seal is included custom-fit to the spa. Cover colors are Storm and Black. Cover lifters are optional add-ons: choose from CoverCradle®, CoverCradle II, UpRite®, or Lift 'n Glide® depending on your installation clearance and preference.

The Pulse carries a 7-year structure warranty, 5 years on shell surface, cabinet, no-leak plumbing, No-Fault® heater, and components, and 3 years on the interior light assembly. See the Warranty section above for the full coverage table. Seven Seas processes all warranty claims on Pulse spas sold from our locations.

Yes, with proper ventilation and drainage. Indoor installations require an electrician-approved 230 V / 50 amp feed, a moisture-resistant floor structure rated for 5,950 lbs, and active humidity ventilation. See the indoor installation guide for full requirements.

Foot Therapy is engineered as a central pod rather than a per-seat foot zone. The jets are positioned so every seated bather's feet meet at the same focal point, making the Pulse an ideal conversation hub, with the geometry pulling the group toward the center. Most hot tubs distribute foot jets seat by seat; Foot Therapy distributes them as a shared experience.

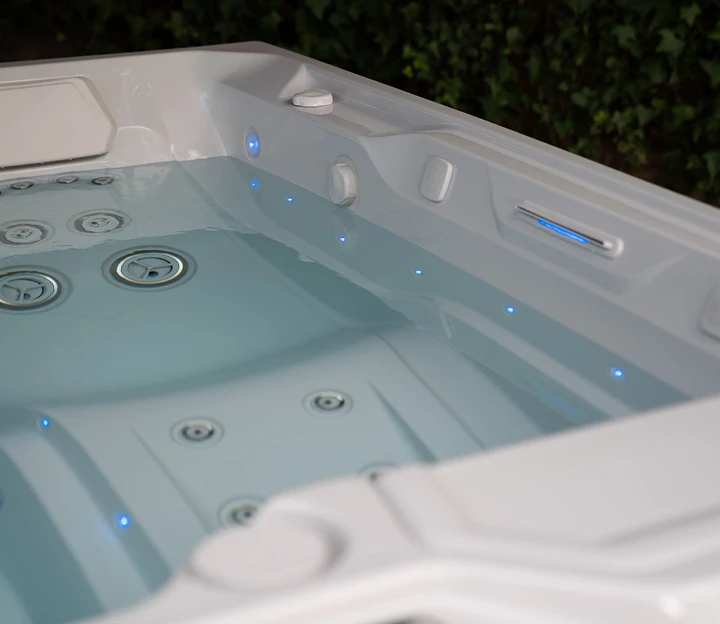

Where to See the Pulse® in Person
