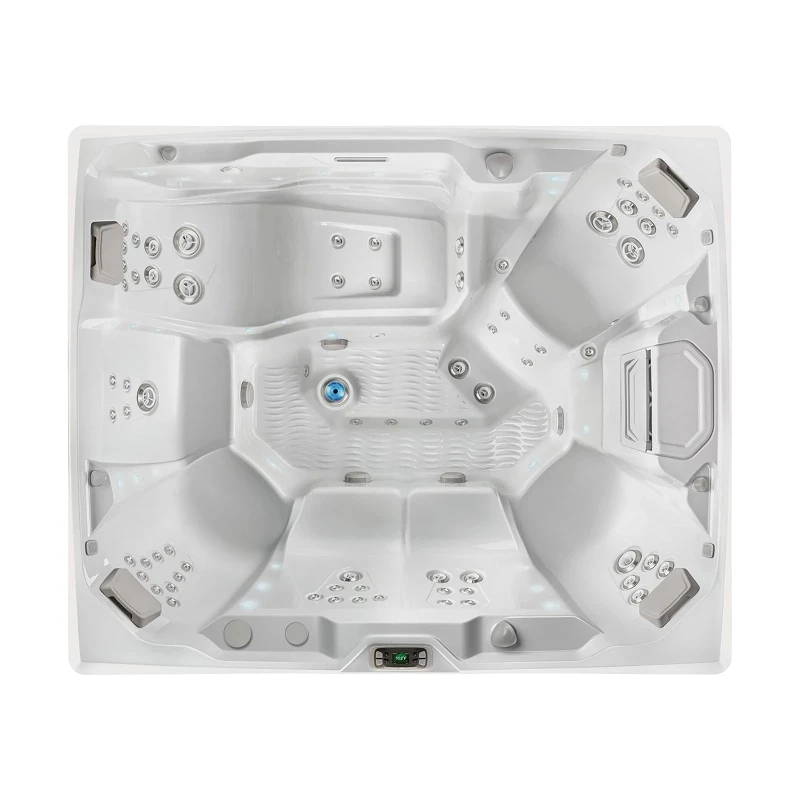

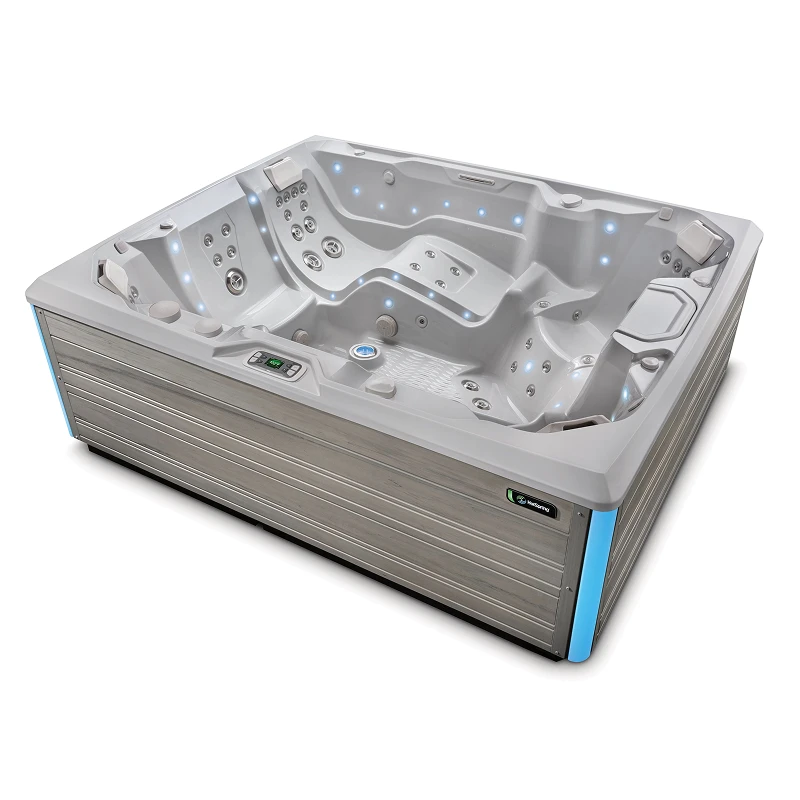

Prism™ Hot Tub

Limelight® Series by Hot Spring Spas

The Prism™ is the largest and most jet-equipped hot tub in the Limelight® Series, the mid-tier hydrotherapy line manufactured by Hot Spring Spas, a Watkins Wellness brand. The Prism is the premium seven-seat Limelight spa with a relaxing lounge seat and exceptional foot and leg massage. Measuring 9'2" × 7'7" with a 525-gallon water capacity, the Prism is the flagship Limelight model: 73 total jets across nine jet types, including the signature JetStream® XL that delivers deep, penetrating massage for the feet, ankles, and calves, driven by three Wavemaster® 9000-class jet pumps and a SilentFlo 5000® circulation pump. The seating geometry combines a contoured Lounge Seat, a sculpted Captain's Chair, Bucket Seats, and Bench Seats. Water care runs through FreshWater® IQ Ready plumbing with 100% no-bypass dual-action Tri-X® filtration and the Limelight's largest effective filtration area at 150 sq. ft. A CoverCradle® cover lifter is included standard. The Prism is sold and serviced through Seven Seas Pools & Spas.

Starting at $379.82/month*

Features At A Glance

Capacity

7 adults (contoured Lounge Seat, Captain's Chair, Bucket Seats, Bench Seats)

Footprint

9'2" × 7'7" × 38" tall (279 × 231 × 97 cm), largest Limelight model

Jets

73 total across 9 jet types, the highest jet count in the Limelight Series

Water Care

FreshWater® IQ Ready (Smart Monitoring + Dosing optional)

Prism Hot Tub Details

  • Heater: No-Fault® 4,000 W (230 V)
  • Electrical: 230 V / 50 amp / 60 Hz (GFCI sub-panel included)
  • Water Care: FreshWater® IQ Ready (Smart Monitoring + Dosing optional)
  • Filtration: 100% No-Bypass Dual-Action with High-Flow Tri-X® Filters (150 sq. ft. effective, the largest in the Limelight Series)
  • Insulation: FiberCor® high-density (manufacturer notes density four times greater than half-pound foam used in most spas)
  • Cover Lifter: CoverCradle® included; UpRite® optional

Who the Prism™ Is Built For

The Prism fits households that want the largest, most jet-equipped Limelight hot tub, a 7-seat lounge configuration with a sculpted Captain's Chair, the signature JetStream® XL foot-and-calf massage, and three Wavemaster® jet pumps for full simultaneous jet operation. At 9'2" × 7'7", the Prism is also the only Limelight model that approaches the footprint of premium Highlife® Series flagships like the Grandee®. With 73 jets, the highest count in the Limelight Series, and a 525-gallon water volume, the Prism is built if you want the maximum hydrotherapy capacity that the Limelight tier offers. Hot Spring features one customer voice on the product page: "Just as advertised. It's easy to care for. The heater keeps it warm 24/7 in cold weather with no waiting."

It is not the right choice if you:
  • Need a 115 V plug-and-play install, the Prism is hardwired 230 V / 50 amp only. The smaller Beam™ is the only Limelight model offered as plug-and-play
  • Want a smaller footprint, at 9'2" × 7'7" the Prism is the largest Limelight model. For a more compact 7-seat Limelight see the Pulse® (7'5" × 7'5") or Flash™ (7' × 7')
  • Want the patented Moto-Massage® DX experience, that jet is exclusive to the Highlife® Series (see the Grandee®)
  • Want lower water-volume operating cost, the Prism's 525-gallon capacity is the largest in the Limelight Series; if you want lower per-month heating cost may prefer the smaller Flair® (335 gallons) or Beam™ (295 gallons)

Want the Prism experience?

Explore the Prism with Seven Seas Pools & Spas and compare the seating, massage, and water-care features in person.

Choose Your Colors

Prism Shell Prism Cabinet

Available Cabinet Styles

Coastal Gray
Espresso
Sable

Available Shell Styles

I'd Like To Talk To Someone About Getting A Prism

Fill out this form and we will be in contact with you shortly about how you can begin your journey to enjoying a Prism.

Select Preferred Form of Contact
Select preferred form of contact
Select Best Time To Contact
Select Best Time To Contact
Select Store Closest To You
Select Store Closest To You

Specifications

Spa Specification Value
Seating capacity 7 adults (contoured Lounge Seat, Captain's Chair, Bucket Seats, Bench Seats)
Length × Width × Height 9'2" × 7'7" × 38" (279 × 231 × 97 cm)
Water capacity 525 gallons (1,990 liters)
Weight (dry) 1,190 lbs (540 kg)
Weight (filled) 6,795 lbs (3,085 kg), includes water and 175 lb adult per seat

The Prism uses three Wavemaster® jet pumps, one 9200 (two-speed) and two 9000 (one-speed) units, each rated 2.5 HP continuous duty / 5.2 HP breakdown torque, paired with a SilentFlo 5000® circulation pump for low-noise filtration. Three jet pumps mean simultaneous full-power operation across all 73 jets without pressure drop. The 73 jets distribute across nine engineered jet types:

Jet Type Count Targeted Area
JetStream® XL 1 "Deep, penetrating massage for your feet, ankles and calves"
XL Dual Rotary 1 Large rotating dual-stream pressure
XL Single Rotary 2 Large rotating single-stream pressure
XL Directional 3 Deep muscle relief
Standard Dual Rotary 7 Rotating dual-stream pressure
Standard Single Rotary 4 "Soothes muscles with a rhythmic, circular motion"
Standard Directional 4 Adjustable directional pressure
Rotary Precision® 10 "Like the fingers of a masseuse"
Directional Precision® 41 "Adjustable up, down, right and left for pinpoint muscle treatment"
  • JetStream® XL, the Prism's signature jet, engineered for deep, penetrating massage to the feet, ankles, and calves from a single large, very powerful jet
  • Comfort Control®, main intensity dial that lets users move "from a soft touch to a powerful massage" without leaving the seat
  • SmartJet® System, selectively distributes water flow to specific jet groups and seats, so individual users can boost or reduce pressure in their position
  • Contoured Lounge Seat, "Reclined and contoured so you can lay back with your legs extended"
  • Captain's Chair, "Deeply sculpted to wrap you in relaxing comfort and a full-body experience", exclusive to the Prism within the Limelight Series
  • Bucket Seats, "Shaped to comfortably cradle your body for a long relaxing soak"
  • Bench Seats, "Upright to support your back plus extra room to change your position"

The Prism is FreshWater® IQ Ready, meaning the spa is engineered to accept the FreshWater® IQ salt-water sanitization platform, the smartest salt water system in the Hot Spring lineup. The system itself is sold separately rather than included standard. When fitted, the system automatically generates chlorine from salt for soft, natural-feeling water. FreshWater® IQ Smart Monitoring + Dosing (hourly chemistry monitoring and step-by-step dosing instructions through the Hot Spring Spas App) is offered as a further optional upgrade.

Water Care Specification Value
Standard system FreshWater® IQ Ready (system sold separately)
Smart monitoring FreshWater® IQ Smart Monitoring + Dosing (optional)
Filtration 100% No-Bypass Dual-Action Filtration with High-Flow Tri-X® Filters
Effective filtration area 150 sq. ft. the largest in the Limelight Series
Filter design note Two-filter Dual-Action design, "increases total filtration area to keep water cleaner with less maintenance"
  • FiberCor® high-density insulation, Hot Spring notes the density is "four times greater than the half-pound foam used in most spas"
  • Polymeric substructure with polyethylene sealed bottom, protects the underside of the spa from ground moisture
  • Patented Pump Shroud that captures heat from the equipment compartment and transfers it to the water
  • No-Fault® 4,000 W heater at 230 V, holds water temperature reliably in cold-weather operation
  • WeatherPro™ cover with "tight fit to keep heat from escaping"
  • SilentFlo 5000® circulation pump that runs continuously on minimal energy
  • CEC and APSP 14 compliant, meets California Energy Commission and Association of Pool & Spa Professionals 14 portable spa energy efficiency standards
  • IQ 2020® Color LCD Control, the main control panel
  • Diagnostic / Ready Light, at-a-glance status indicator
  • Hot Spring Spas App, optional, via the Connected Spa Kit. Adds remote temperature control, water-care alerts (with FreshWater® IQ Smart Monitoring), and diagnostic monitoring
  • Virtual View™ AR app compatible, preview the Prism in your backyard before purchase
  • Multi-Color LED Points of Light, interior lighting accents the shell contours
  • Multi-Color Exterior LED with Timer, exterior cabinet lighting
  • Vidro® Backlit Ribbon Waterfall, the Limelight signature water feature, a backlit ribbon of water with integrated lighting
Cover & Accessory Specification Value
Cover WeatherPro™ 4" Tapered Core with Hinge Seal (custom-fit)
Cover colors Storm, Black
Cover lifter (included) CoverCradle® (included standard on Prism)
Cover lifters (optional) UpRite®
Steps (optional) Limelight® Series Steps
Entertainment (optional) Wireless Music System, Subwoofer
Sanitation (optional) Ozone System

The Prism is the only Limelight model that includes a CoverCradle® cover lifter as standard equipment, on every other Limelight model, lifters are optional add-ons.

Hot Spring publishes the Prism's warranty terms explicitly. Seven Seas honors and processes warranty claims for every Prism sold:

Warranty Component Coverage
Structure 7 years
Shell surface 5 years
Cabinet 5 years
No-leak plumbing 5 years
No-Fault® heater 5 years
Components 5 years
Interior light assembly 3 years

The 7-year structure warranty matches the rest of the Limelight® Series. The shell-surface coverage is one tier shorter than the Highlife® Series (which carries 7 years on shell surface) and one tier longer than the Hot Spot® Series.

Hydrotherapy Experience, What a Prism Soak Feels Like

The Prism centers on the JetStream® XL as its signature experience. Sitting within reach of the JetStream® XL position, you receives "deep, penetrating massage for your feet, ankles and calves from this large and very powerful jet", a dedicated lower-leg therapy station unique to the Prism within the Limelight Series. Stepping over to the contoured Lounge Seat, you lies back with legs extended into a sculpted reclined position, with hydrotherapy delivered along the full length of the body. The Captain's Chair, also exclusive to the Prism within the Limelight Series, wraps you in a "deeply sculpted" full-body shape. Bucket Seats and Bench Seats fill out the rest of the seven-seat geometry. With three Wavemaster® jet pumps driving 73 jets across nine jet types, including the JetStream® XL, XL Dual Rotary, XL Single Rotary, XL Directional for "deep muscle relief," and Rotary Precision® "like the fingers of a masseuse", the Prism delivers the most varied and most powerful hydrotherapy session in the Limelight Series. Comfort Control® dials the overall intensity from a soft touch to a powerful massage; SmartJet® distributes flow toward whichever seats are occupied.

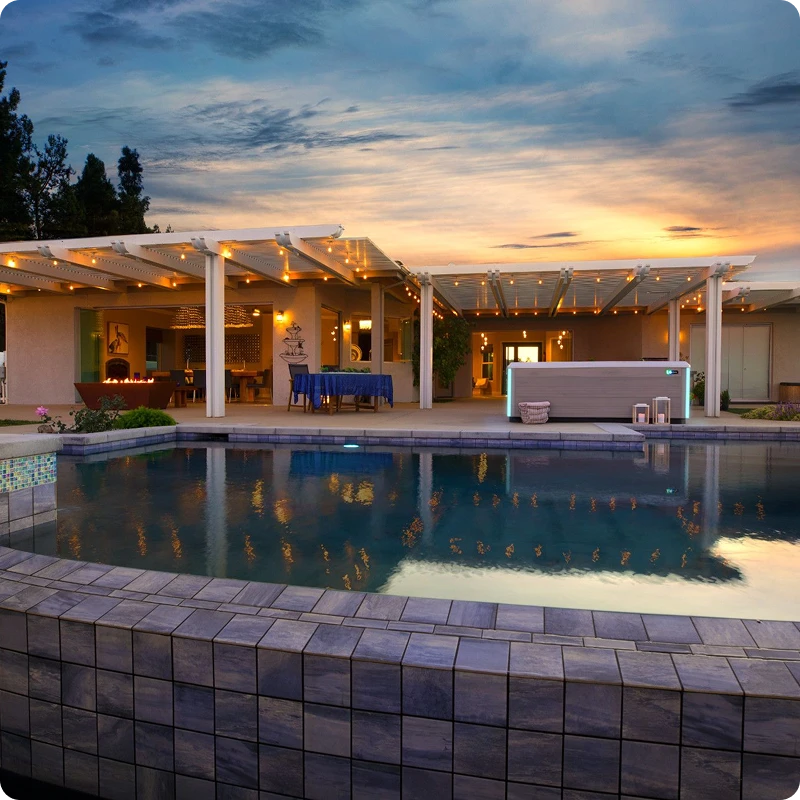

Prism hot tub

See if the Prism fits your space

Review the dimensions, seating layout, and water-care features with a Seven Seas advisor.

Related Spas in the Limelight® Series

Related Spa Seats Lounge Key Differentiator
Prism™ (this model) 7 Yes Largest Limelight, 73 jets, JetStream® XL, Captain's Chair, CoverCradle® included
Pulse® 7 No Largest open-seating Limelight, 49 jets, central Foot Therapy pod
Flash™ 7 No 7-seat open-seating in 7' × 7' footprint, jetted footpod
Flair® 6 Yes 6-seat lounge in 7' × 7' footprint, most-reviewed Limelight
Beam™ 4 No Smallest Limelight, 4 Bucket Seats, 115 V plug-and-play option

How the Prism Compares to Other Hot Spring Spas Series

The Limelight Series sits in the middle of the Hot Spring Spas lineup. From most to least premium: Highlife → Limelight → Hot Spot → Freeflow.

Highlife Series

Highlife® Series, premium top tier (Moto-Massage® DX, FreshWater® IQ Salt System included standard, BellaFontana® water feature, multi-layer urethane foam insulation, 7-year structure and shell warranty). The Prism's closest Highlife counterpart is the Grandee® (7-seat open seating in a similar large footprint)

View Highlife Series Hot Tubs
Limelight Series

Limelight® Series, mid tier. The Prism lives here, as the flagship Limelight. Defined by FiberCor® high-density insulation, Vidro® Backlit Ribbon Waterfall, Multi-Color LED Points of Light, FreshWater® IQ Ready (rather than included), and, on the Prism specifically, the JetStream® XL and Captain's Chair seat

View Limelight Series Hot Tubs
Freeflow Series

Freeflow® Series, entry tier (FROG® Sanitizing System Ready, polyester filters, rotomolded unibody cabinet, 2-Speed 1.5 HP jet pump, LCD screen control, 115 V plug-and-play standard, smallest capacities, simplest accessory ecosystem)

View Freeflow Series Hot Tubs

Seven Seas also carries the Caldera Spas brand, Hot Spring's sister Watkins Wellness line. Other premium brands take different hydrotherapy approaches: Caldera Spas, for example, builds its experience around the UltraMassage® lounge (a choreographed multi-zone sequence in a recline lounger) and the Atlas® Neck Massage (above-water jets contoured to the neck and shoulders). Both deliver excellent therapeutic massage, they simply feel quite different. Seven Seas carries both brands. Call or stop by your local Seven Seas Pools & Spas location to see which Caldera and Hot Spring models are currently on display and available for comparison. The Caldera vs Hot Spring comparison covers how the platforms differ in detail.

Ready for a private Prism wet test?

The Prism is part of the lineup carried by Seven Seas Pools & Spas. Call ahead or stop by your local showroom to confirm current showroom availability. Visiting a showroom is the fastest way to test the JetStream® XL on your calves, sit in the Captain's Chair, and compare the Prism against the open-seating Pulse® or the lounge-equipped Flair®. Call or visit your local Seven Seas Pools & Spas location to schedule a private wet-test soak appointment with the models currently on the floor.

Installation and Delivery

The Prism requires a 230 V / 50 amp / 60 Hz circuit wired to a GFCI sub-panel, the sub-panel is included with the spa.

Site requirements:

Installation and Delivery
  • Level reinforced concrete pad, deck capable of supporting 6,795 lbs filled, or a prepared spa pad

  • 24" minimum service clearance on at least one side for equipment access

  • Standard delivery to ground-level installations

  • The 9'2" × 7'7" footprint is the largest in the Limelight Series, confirm gate-clearance and pathway dimensions before delivery

Seven Seas offers full delivery and installation service including site assessment, electrical coordination with a licensed electrician, and post-fill water balancing.

Water Care and Ongoing Maintenance

With FreshWater® IQ Ready plumbing, the Prism accepts the FreshWater® IQ salt-water sanitization platform, described by Hot Spring as "our smartest salt water system yet", as an optional add-on at delivery or any time after. When fitted, week-to-week maintenance reduces to monitoring water clarity and replacing the salt cartridge when prompted. Adding Smart Monitoring + Dosing brings hourly chemistry monitoring and step-by-step dosing instructions through the Hot Spring Spas App.

The 100% no-bypass dual-action Tri-X® filtration uses two filters, dedicated to the circulation pump and jet pumps, with a 150 sq. ft. effective filtration area, the largest in the Limelight Series. Every drop of water passes through filtration during operation, and the larger area means fewer cleaning cycles per gallon of water moved. Filter cleaning runs on the same monthly cadence as any high-flow filter cartridge, see the filter care guide in the owners area.

For broader guidance, the salt-water hot tub care guide in the owners area covers cartridge replacement, ozone interaction, and seasonal draining intervals.

Frequently Asked Questions

Yes, and a family of 4 will appreciate the room. The Prism's seven-person seating with a Lounge Seat, Captain's Chair, Bucket Seats, and Bench Seats means four bathers each get a seat type matched to their preference, with three seats free for guests. The JetStream® XL station is particularly worth claiming for anyone with calf or foot tension. For households of 2 or 3 only, a smaller Limelight like the Flair® (6-seat lounge) or Beam™ (4-seat) may fit better.

The Limelight Series is engineered for low operating cost via FiberCor® high-density insulation (engineered for four times the density of half-pound foam used in most spas), the patented Pump Shroud heat capture, the tight-fitting WeatherPro™ cover, and the SilentFlo 5000® circulation pump. The Prism's 525-gallon water capacity is the largest in the Limelight Series, which means proportionally more water to keep heated than the smaller models. Owners report the heater keeps the spa warm year-round even in cold-weather climates. Actual monthly electrical cost depends on local utility rates, ambient temperature, and use frequency. The CEC and APSP 14 certifications verify the Prism meets strict energy efficiency standards.

No. The Prism is hardwired 230 V / 50 amp / 60 Hz only. For a 115 V plug-and-play Limelight option, see the smaller Beam™, which ships convertible between 115 V plug-and-play and 230 V hardwired.

Yes. The Prism includes a contoured Lounge Seat plus a Captain's Chair, the lounge is reclined and contoured for laying back with legs extended, and the Captain's Chair is deeply sculpted to wrap the user in relaxing comfort with a full-body jet experience. The Captain's Chair is exclusive to the Prism within the Limelight Series.

JetStream® XL is the Prism's signature jet, a single large, very powerful jet engineered specifically for the feet, ankles, and calves, delivering deep, penetrating massage. It is exclusive to the Prism within the Limelight Series.

Both are 7-seat hot tubs, but they differ in tier and seating geometry. The Grandee® is a Highlife® Series (premium tier) model with open seating built around the patented Moto-Massage® DX jet, multi-layer urethane foam insulation, FreshWater® IQ Salt System included standard, and a 7-year shell-surface warranty. The Prism is a Limelight Series (mid tier) model with a contoured Lounge Seat plus a Captain's Chair, FiberCor® high-density insulation, FreshWater® IQ Ready (sold separately), the JetStream® XL signature jet, and a 5-year shell-surface warranty. If you want Moto-Massage® DX choose the Grandee; if you want the lounge plus Captain's Chair plus JetStream® XL choose the Prism.

Yes, and the Prism is unique in the Limelight Series for including a CoverCradle® cover lifter as standard equipment. The WeatherPro™ 4" Tapered Core cover with hinge seal is included custom-fit (Storm or Black). UpRite® is offered as an optional alternative cover lifter.

The Prism carries a 7-year structure warranty, 5 years on shell surface, cabinet, no-leak plumbing, No-Fault® heater, and components, and 3 years on the interior light assembly. See the Warranty section above for the full coverage table. Seven Seas processes all warranty claims on Prism spas sold from our locations.

Yes, with proper ventilation and drainage. Indoor installations require an electrician-approved 230 V / 50 amp feed, a moisture-resistant floor structure rated for 6,795 lbs, and active humidity ventilation. The 9'2" × 7'7" footprint is the largest in the Limelight Series, confirm doorway and pathway clearance before planning an indoor install. See the indoor installation guide for full requirements.
